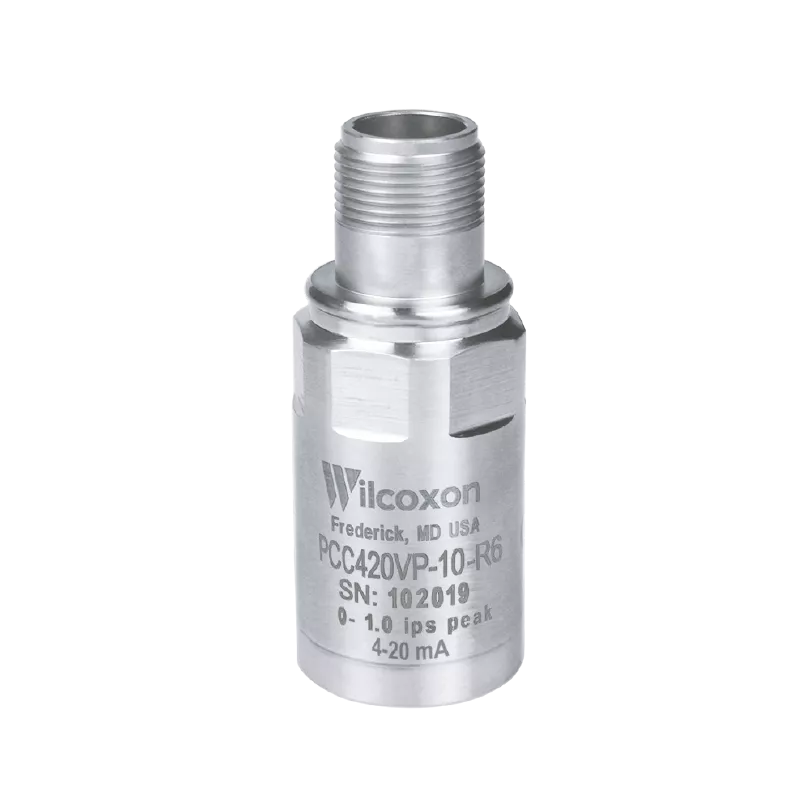

PCC420V Series 4-20 mA Vibration Sensors

RMS and peak velocity loop powered sensors


Key features

  • True RMS or calculated peak output
  • Connector options: 2-pin MIL-C-5015 or 4-pin M12
  • Compact housing for applications with height restrictions
  • Easily integrated into existing process control systems
  • Manufactured in an approved ISO 9001 facility

About the PCC420V Series 4-20 mA Vibration Sensors

PCC420V series sensors provide a 4-20 mA output proportional to velocity vibration, allowing for continuous trending of overall machine vibration. This trend data alerts users to changing machine conditions and helps guide maintenance in prioritizing the need for service. The choice of RMS or peak output allows you to choose the sensor that best fits your requirements.

Key Features PCC420V Series

  • True RMS or calculated peak output
  • Connector options: 2-pin MIL-C-5015 or 4-pin M12
  • Compact housing for applications with height restrictions
  • Easily integrated into existing process control systems
  • Manufactured in an approved ISO 9001 facility

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Connector orientation Top exit
Connector style MIL-C-5015, 2-pin
Detector type Peak
Frequency response 3.5 Hz - 2,000 Hz
Full-scale range 1.0IPS
Hazardous area approvals Non-approved
Measurement unit Velocity
Sensor output 4-20 mA
Temperature range -40°C to +105°C
Weight 120 grams
