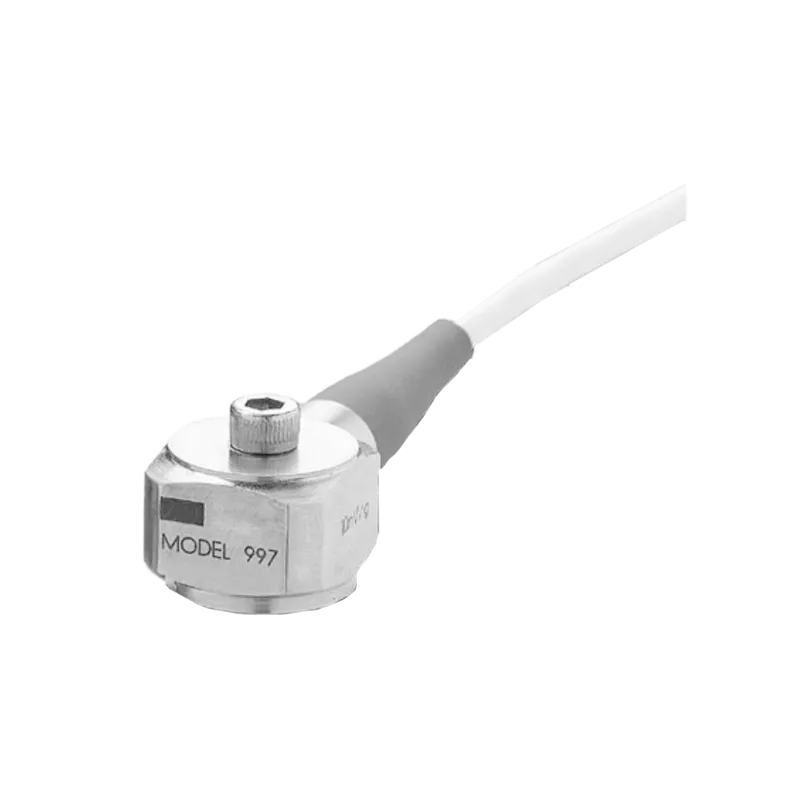

997-M4 High Frequency Vibration Sensors
Side exit, high frequency, ring type w/ integral cable, M4 mounting thread,10 mV/g, ±10% sensitivity tolerance
About the 997-M4 High Frequency Vibration Sensors
High frequency accelerometers are ideal for applications involving high speed components such as machine tool spindles, compressors, and turbines. These applications often include gear mesh frequencies with higher harmonics or blade pass frequencies exceeding 60,000 CPM. Wilcoxon’s high frequency 997 series sensors offer 10 mV/g sensitivity, preventing sensor overload. Sensors with 10 mV/g output are most commonly used due to their high amplitude range (600 g) which can be present in high speed applications. Typically there is little measurable vibration in terms of displacement and velocity at high frequency; however tremendous amounts of acceleration may be present.
Key features 997-M4
- Corrosion resistant
- Hermetically sealed
- ESD-protected
- Reverse wiring protection
- Internal ring offers extra isolation
- IP67 integral cable
- Manufactured in an approved ISO 9001 facility
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Top exit |
| Connector style | Integral cable |
| Frequency response | 0.5 Hz - 29,000 Hz |
| Full-scale range | 600 g peak |
| Hazardous area approvals | Non-approved |
| Mounting | Thread 8-32 tapped hole |
| Resonance frequency | 45 kHz |
| Sensitivity | 10 mV/g |
| Sensitivity tolerance | ±10 % |
| Temperature range | -50°C to +125°C |
| Weight | 35 grams |
