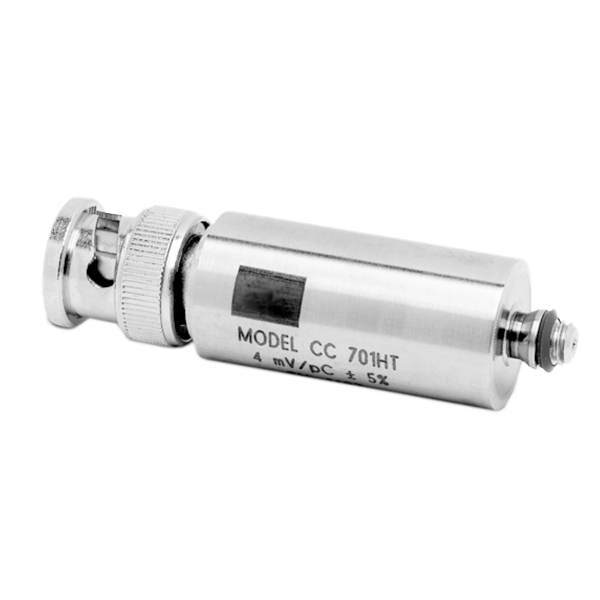

About the CC701-HT In-line charge converter

The CC701HT charge converter is specifically designed for use with high temperature, charge mode accelerometers. It is a solid state, in-line device which converts the charge output of a high impedance piezoelectric vibration sensor to a low impedance voltage signal. It incorporates an overload-protection circuit and the low noise Piezofet® amplifier. The CC701HT yields a strong signal, immune to cable motion noise, and is compatible with standard signal readout and equipment such as monitors, voltmeters, analyzers, etc. Long cables can be driven without signal loss. The CC701HT charge converter is powered by the constant current source of a power unit/amplifier (models P702, P703B, P704B, PR710 or PR712) or it can be supplied from an external constant current supply of 18-30 VDC, capable of delivering from 2-10 mA (a 4 mA constant current diode minimum is recommended).

Key features CC701-HT

4 mV/pC, compatible w/ model 376
Overload protection
Strong voltage signal
Immune to cable motion noise
Compatible with standard signal readout equipment

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Cc701 ht in line charge converter en

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
Allowable source capacitance, max	500 pF
Case material	stainless steel
Frequency response	±1, 2.0 - 10,000 Hz \| – 3 dB, 1.0 - 20,000 Hz
Harmonic distortion	<1%
Nonlinearity	<1%
Output voltage, max	5 Vrms
Sensitivity	± 5% 4 mV/pC
Temperature range	– 40 to +100° C
Voltage source	18 - 30 VDC
Weight	40 grams
