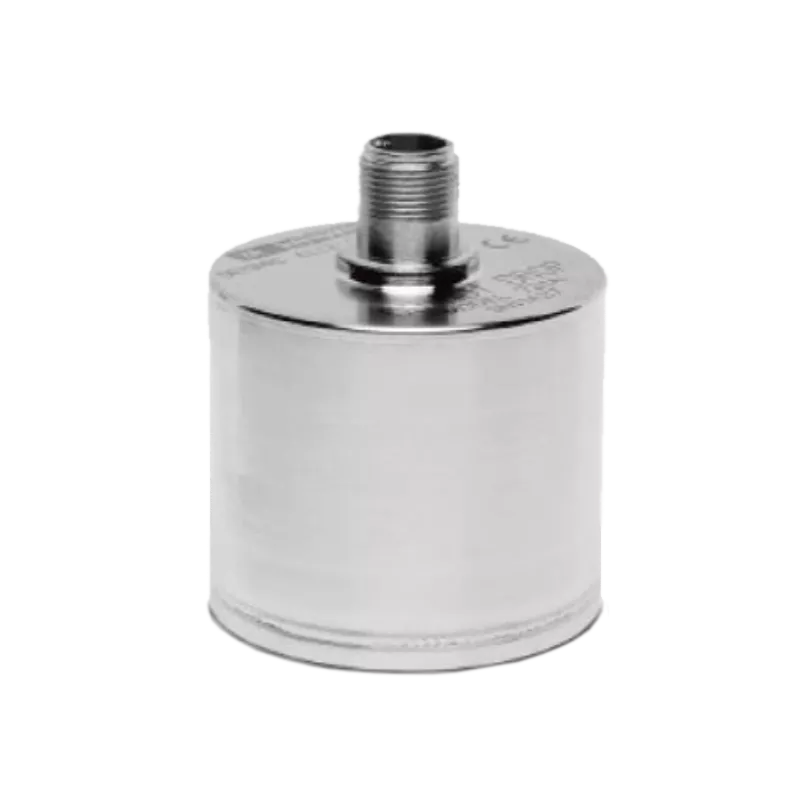

731A Low Frequency (Seismic) Vibration Sensors
Ultra-quiet, ultra low frequency seismic accelerometer
About the 731A Low Frequency (Seismic) Vibration Sensors
Top exit, ultra low frequency seismic accelerometer, case isolated, 2-pin MIL-C-5015 connector, 10 V/g
Key features 731A
- Ultra high sensitivity
- Ultra low-noise electronics for clear signals at sub micro-g levels
- Low frequency capable
- Low pass filtered to eliminate high frequencies
- Reverse wiring protection
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Top exit |
| Connector style | MIL-C-5015, 2-pin |
| Frequency response | 0.05 Hz - 450 Hz |
| Full-scale range | 0.5 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 3/8-16 tapped hole |
| Resonance frequency | 750 Hz |
| Sensitivity | 10 V/g |
| Sensitivity tolerance | ±10 % |
| Sensor output | Dynamic vibration (IEPE) |
| Temperature range | -10°C to +65°C |
| Weight | 775 grams |
