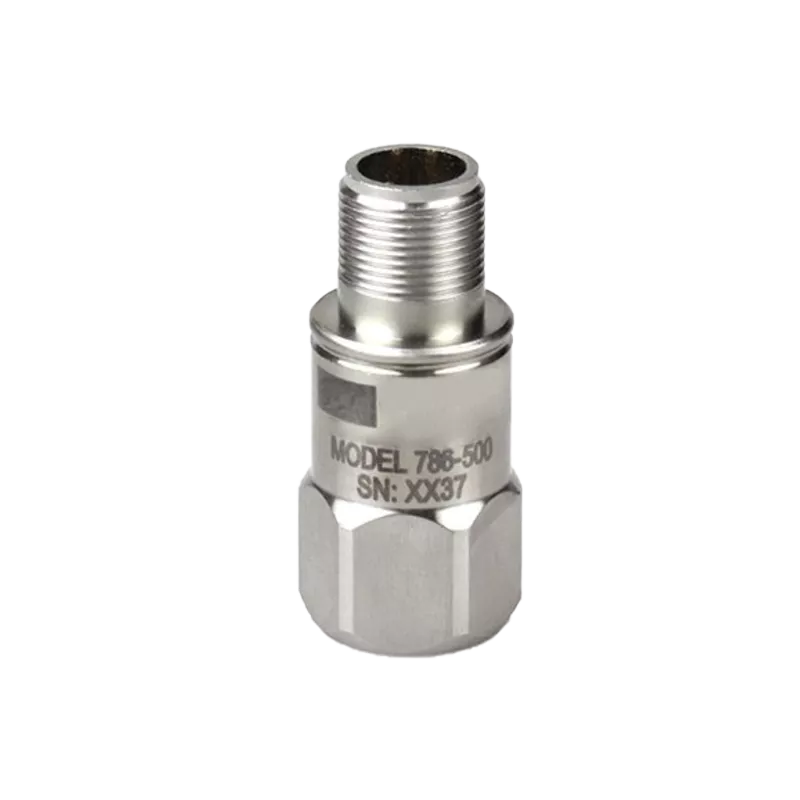

786-500 Low Frequency (Seismic) Vibration Sensors
General purpose low-frequency accelerometer
About the 786-500 Low Frequency (Seismic) Vibration Sensors
Top exit, broadband high sensitivity, low freq sensor, MIL-C-5015 connector,500 mV/g, ±5% sensitivity tolerance
Key features 786-500
- Clear signals at low vibration levels
- Extended low end frequency response vs. other general purpose accelerometers
- A single sensor can detect both low and high speed vibrations
- Optimized to detect vibration on slow-turning machinery such as cooling tower fans and slow speed gearboxes
- ESD and reverse wiring protection
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Top exit |
| Connector styl | MIL-C-5015, 2-pin |
| Frequency response | 0.2 Hz - 14,000 Hz |
| Full-scale range | 10 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 1/4-28 UNF tapped hole |
| Resonance frequency | 30 kHz |
| Sensitivity | 500 mV/g |
| Sensitivity tolerance | ±5 % |
| Sensor output | Dynamic vibration (IEPE) |
| Temperature range | -50°C to +120°C |
| Weight | 90 grams |
