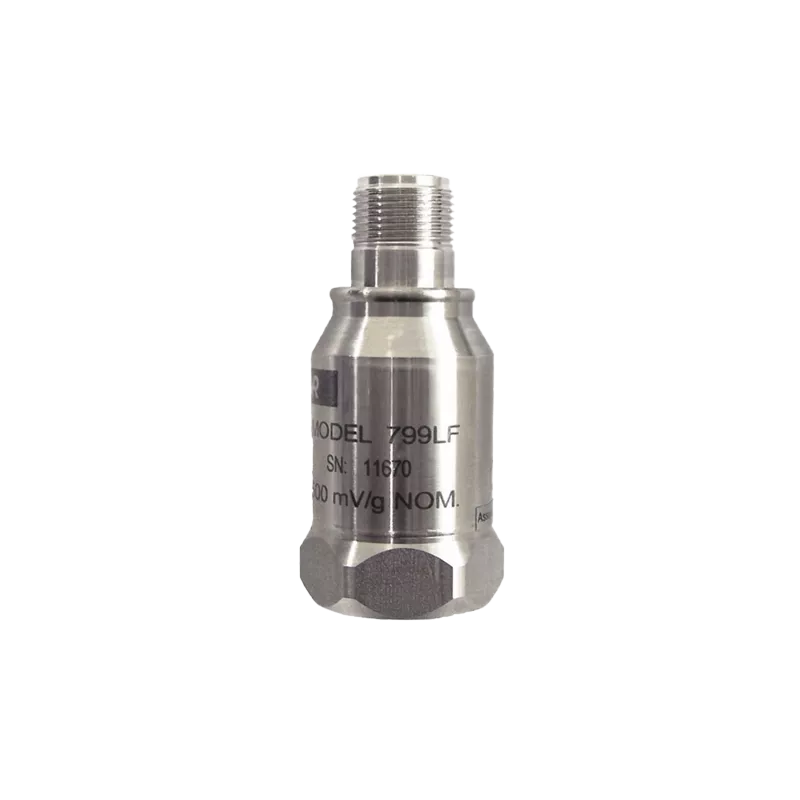

799LF Low Frequency (Seismic) Vibration Sensors
Low-frequency, filtered accelerometer
About the 799LF Low Frequency (Seismic) Vibration Sensors
Top exit, low noise, 0.1 Hz low freq, MIL-C-5015 connector, 500 mV/g, ±5% sensitivity tolerance
Key features 799LF
- High sensitivity
- Ultra low-noise electronics for clear signals at very low vibration levels
- Opimized for 15V supply
- Low pass filtered to eliminate high frequencies
- Hermetically sealed
- ESD protection
- Reverse wiring protection
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Top exit |
| Frequency response | 0.1 Hz - 2,500 Hz |
| Full-scale range | 10 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 1/4-28 UNF tapped hole |
| Resonance frequency | 18 kHz |
| Sensitivity | 500 mV/g |
| Sensitivity tolerance | ±5 % |
| Temperature range | -50°C to +120°C |
| Weight | 205 grams |
