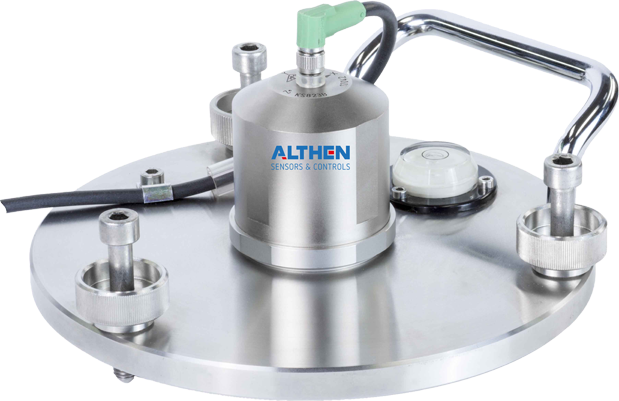

AV0823B/DIN4150 Multi Axis Vibration Sensors
Triaxial Sensor for Vibration Measurement on Buildings
About the AV0823B/DIN4150 Multi Axis Vibration Sensors
Triaxial Vibration Sensor for Structural Vibration Measurement acc. to DIN4150-2 and DIN4150-3. This sensor has an IEPE-Output and a high sensitivity, low frequency limit and very low noise. It is particularly suited for sensitive measurements at buildings (DIN 4150).
Key features AV0823B/DIN4150
• Measurement Range ±12 g
• Sensitivity 500 mV/g ±5 %
• Frequency Range (±3 dB) acc. to DIN 4150
• Residual Noise (RMS) acc. to DIN 4150
• Temperature Range -30 … +90 °C
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Destruction limit: | 2000 g |
| Environmental sealing: | IP67 |
| Frequency range: | according to DIN45669 for DIN 4150-2 and DIN 4150-3 |
| Operating temperature: | -30 - +90 °C |
| Output connector: | Binder 718 (M8 x 1) |
| Range: | ±12 g |
| Residual noise (rms): | according to DIN45669 for DIN 4150-2 and DIN 4150-3 |
| Sensing element design: | shear design |
| Sensitivity: | 500 mV/g ±5 % |
| Sensor case material: | stainless steel |
| Temperature coefficient of sensitivity: | -0.05 %/K |
| Temperature transient sensitivity: | 0.0005 ms-2/K |
| Weight sensor platform: | approx. 2650 grams |
| Weight sensor without cable: | approx. 365 grams |
