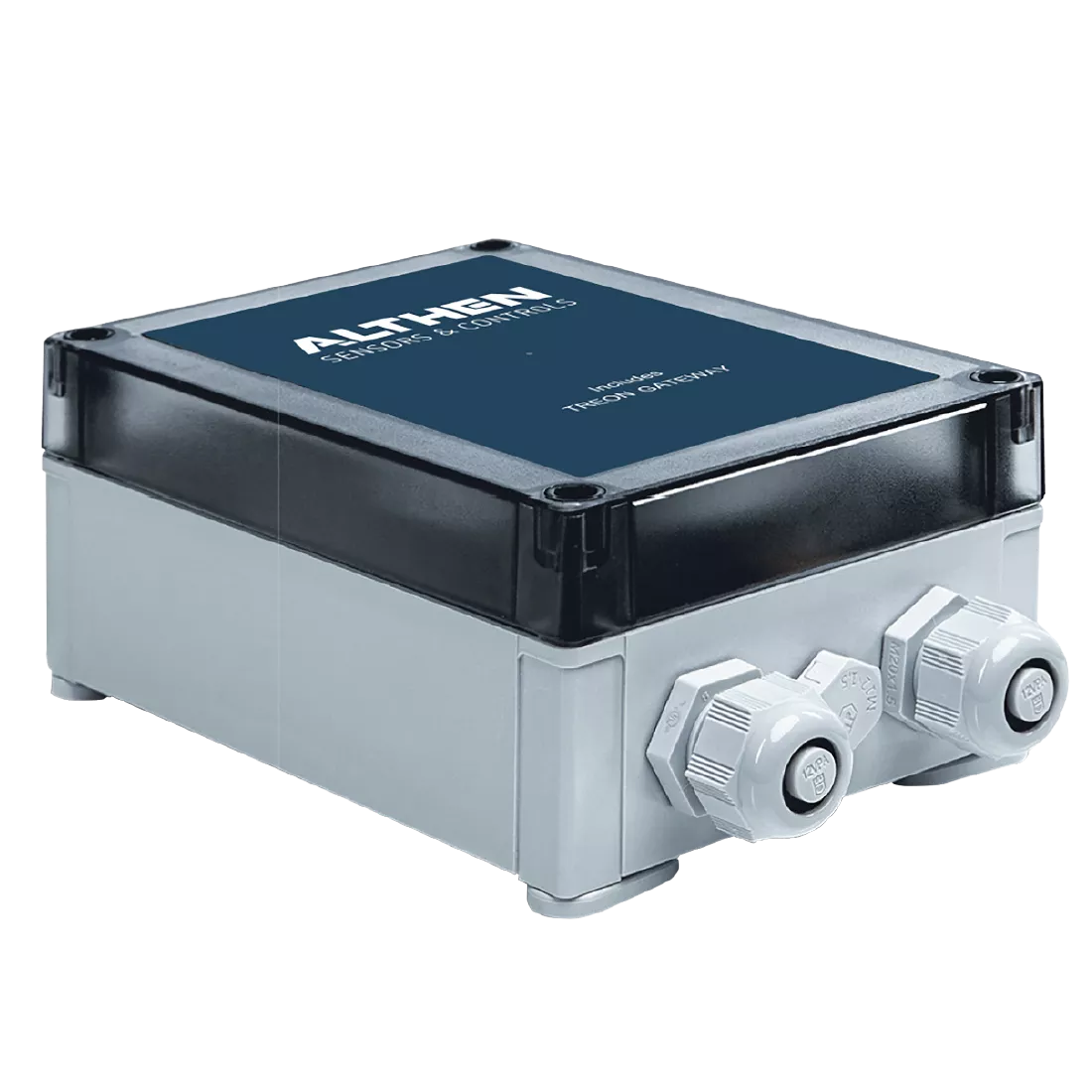

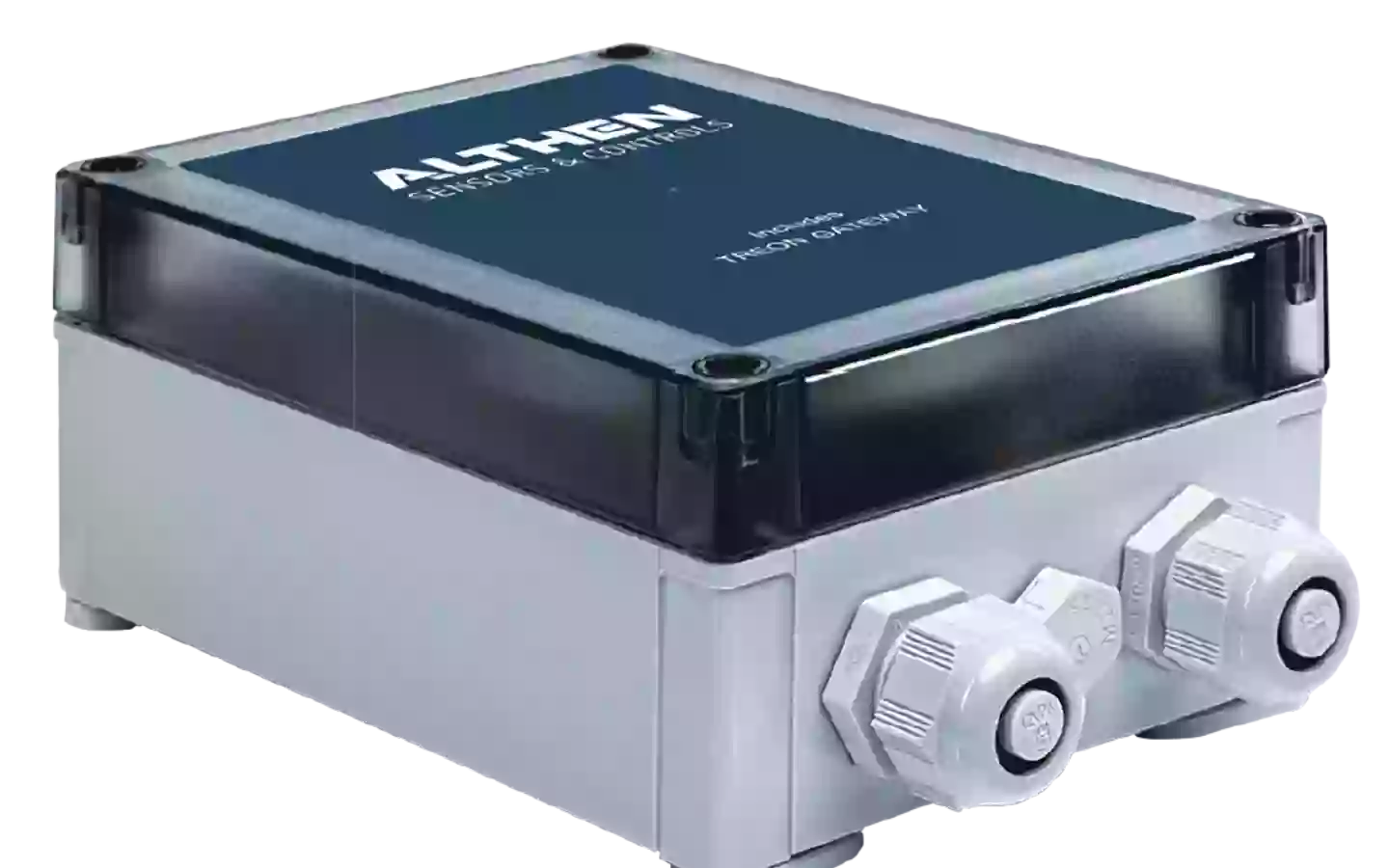

Water and dust proof enclosure for Industrial IoT Gateway

The Water and Dust proof enclosure has been designed to protect the IIoT Gateway (model 1111) in outdoor or industrial indoor conditions. Enclosure includes gateway AC/DC power supply, DC cable and gateway holder. Class II design (no FG pin).

Ambient conditions

Ambient temperature -20-50 °C
Storage temperature -40-85 °C
Relative humidity 20-90 %,
noncondensing
Flammability rating: UL 746C

Mechanical specifications

Degree of protection IP67 for enclosure
Size 175 x 175 x 75mm, excl. cable glands
Pressure equalizer plug
Wall mounting
Impact strength: IK08
Color: grey RAL-7035
Material: Base Fiberglass-reinforced PC
Cover transparent PC plastic.

Power Supply:

Voltage Range 85-264VAC
Frequency Range 47-440Hz
Power Consumption 30VA Max
Electrical connection variants:
- EURO TYPE F UNGROUNDED 2 WIRE
- NEMA 1-15 Class II Power Cords SAFETY and EMC
- Safety UL60950-1, TUV EN60950-1
- EMC immunity EN61000 1,2,3,5,6,8,11
- Surge L-N 1kV
