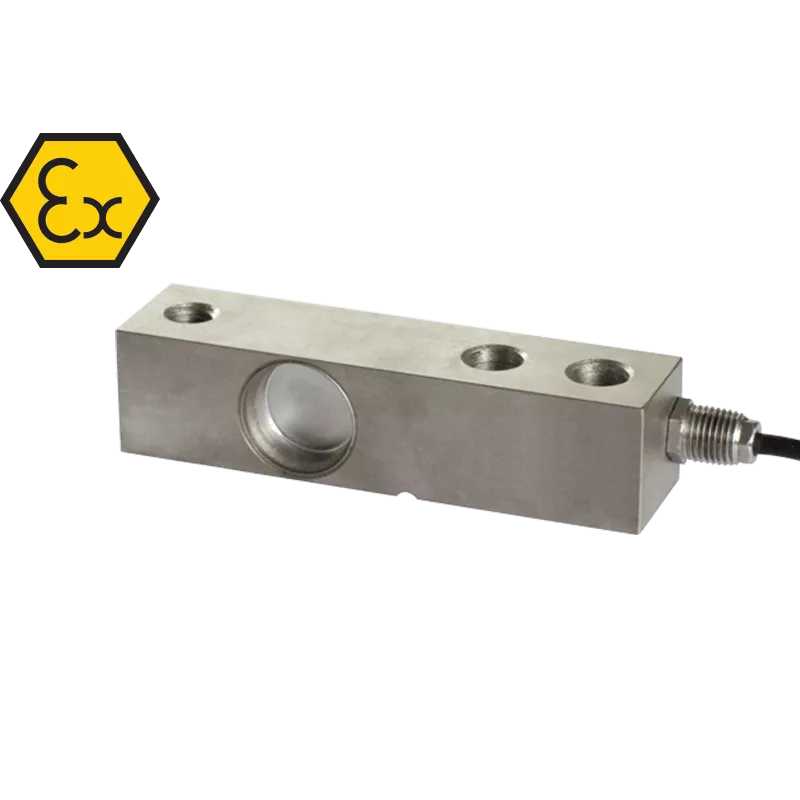

FTK Bending Shear Beam Load Cell

Protection rating IP 67/IP68


Key features

  • Measuring ranges: Bending bar 75, 150, 300kg / Sliding bar: 500, 1000, 2000, 3000, 5000kg.
  • For tensile/pressure load
  • Special steel construction
  • Combined error: < +/- 0.02%.
  • Output signal normalized: 2 mV/V ±0.1%

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Combined error ≤±0.02%
Compensated temperature range -10 °C / +40 °C
Creep at nominal load in 30 minutes 0.03%
Deflection at nominal load 0.6 mm
Input resistance 400 Ω ±10
Insulation resistance ≥5000 MΩ
Material Special steel
Max supply voltage without damage 15 V
Minimum verification interval (v min) - | E max / 12000
Nominal load (e max) 75 -150 - 300 - 500 kg | 1000 - 2000 - 3000 - 5000 kg
Oiml r60 accuracy class • verification intervals - | C3 • 3000
Operating temperature range -20 °C / +70 °C
Output resistance 352 Ω ±2
Protection class IP67 (75 - 300 kg), IP68 (500 - 5000 kg)
Rated output 2 mV/V ±0.1%
Safe overload (% of full scale) 150%
Temperature effect on span 0.0012% °C
Temperature effect on zero 0.002% °C
Ultimate overload (% of full scale) 250%
Zero balance ±2%
