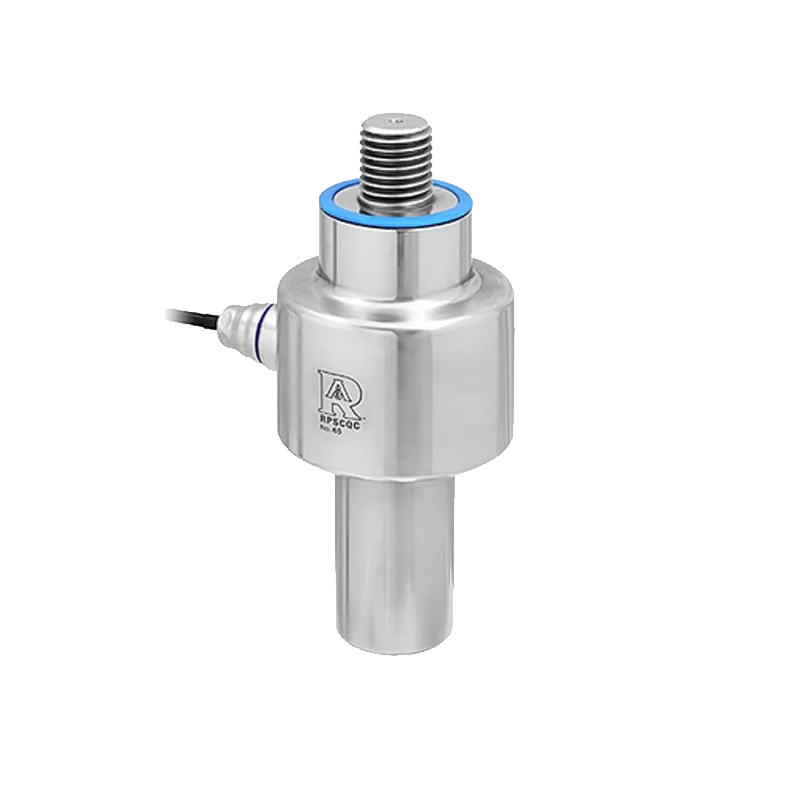

FLC 3A Hygienic compression load cell

Hygienic device RPSCQC authorized by 3-A SSI


About the FLC 3A Hygienic compression load cell

  • Hygienic device RPSCQC authorized by 3-A SSI
  • Cable suitable for contatct with food
  • 17-4ph stainless steel construction
  • Combined error < +/- 0.1 %
  • Protection rating IP69K
  • Adjustable height

Accessories

Hygienic box with 1-4 cells equalization / parallel board

  • Hygienic junction box in AISI 304 stainless steel
  • 1-4 cells equalization board (4/6 wires)
  • 1-4 cells parallel board (4/6 wires)
  • Certified 3-A Sanitary Standards
  • Hygienic device RPSCQC authorized by 3-A SSI
  • Blue hygienic cable gland for passage up to 7 cables
  • IP68 protection rating
  • Cylindrical design to facilitate sanitization
  • Dimensions 143,4 x 92 mm

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Nominal load 1000 - 2000 - 5000 - 10000 - 20000 kg
Combined error ≤±0.1%
Rated output 2.0 mV/V ±0.1%
Temperature effect on zero 0.005% °C
Temperature effect on span 0.005% °C
Compensated temperature range -10 °C / +50 °C
Creep at nominal load in 30 minutes 0.05%
Max supply voltage without damage 5 ÷ 15 VDC
