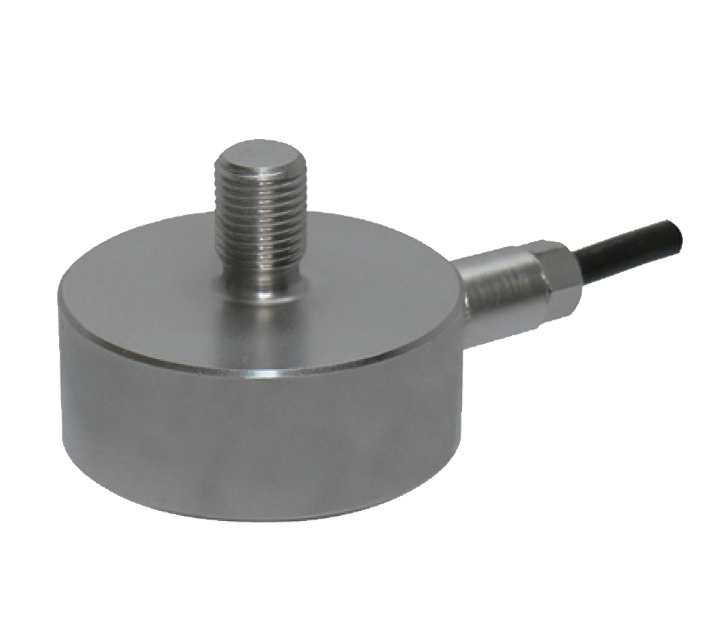

ACDESR Series Miniature Load Cell
Miniature Load Cell for for low profile tension and compression service
Key features
- Range: 50, 100, 200, 500, 1000, 2000kg
- 17-4PH Stainless steel construction
- Compact size with low profile
- Fully welded seal with stainless steel cover for hostile environment applications
General Information
The ACDESR miniature force transducer is suitable for measuring tensile and compressive forces requiring a low profile load cell. The compact size makes the cell ideal for a variety of applications, including test and weighing systems.
Features
- 17-4PH stainless steel construction
- Fully welded seal with stainless steel cover for harsh environment applications
- Compact size with low profile
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Compensated temperature range | -10 to 70°C |
| Excitation voltage | 3 to 12V (Recommended), 15V(Max.) |
| Hysteresis | ≤0.1% R.O. |
| Non-linearity | ≤0.1% R.O. |
| Rated capacity (r.c.) | 50, 100, 200, 500, 1000, 2000kg |
| Rated output (r.o.) | 2.0mV/V ± 0.25% |
| Terminal output resistance | 700 Ohms ± 10 Ohms |
