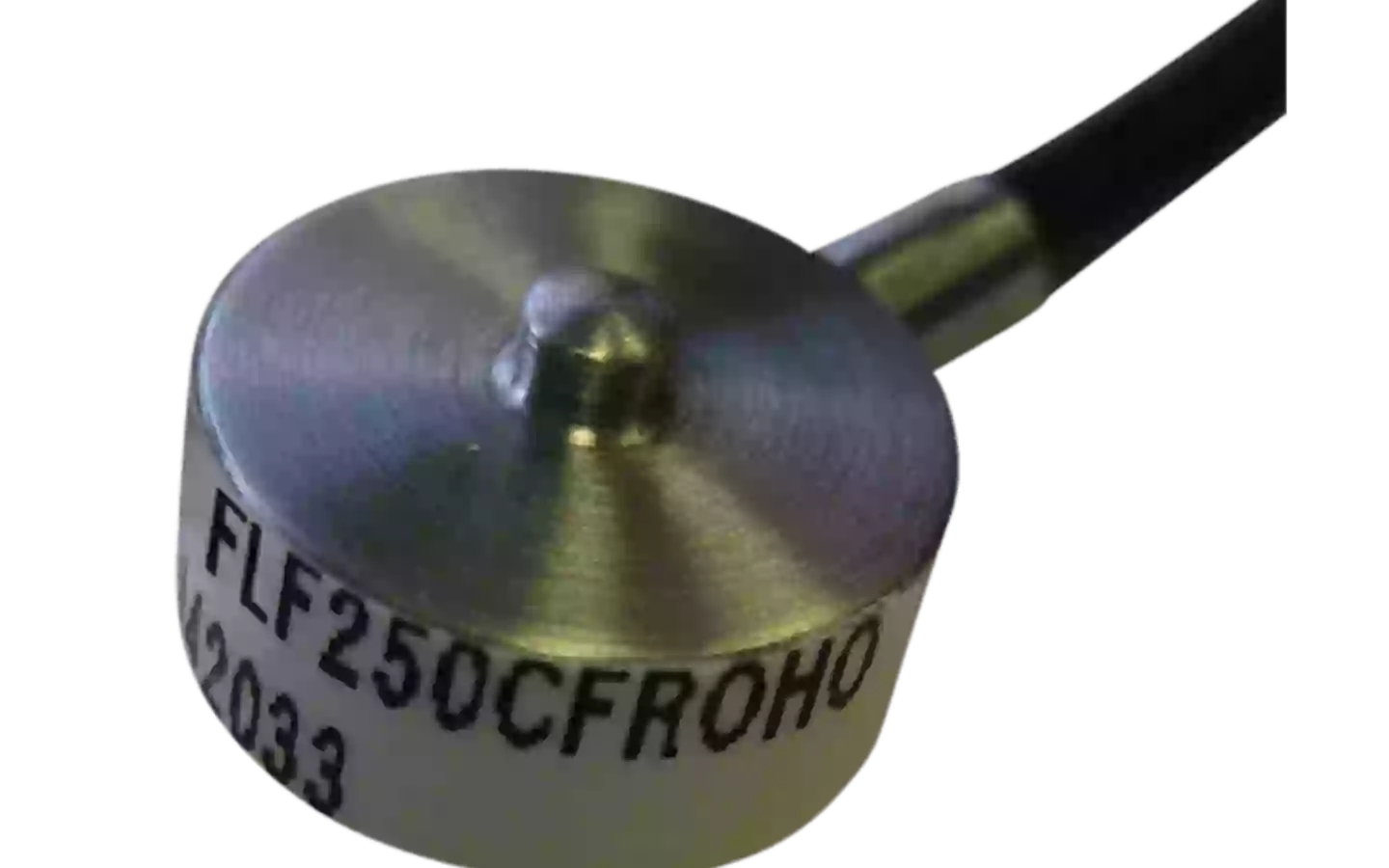

ALF250 Miniature Load Cell
Miniature diaphragm loadcell
Key features
- Miniature diaphragm loadcell
- Measurement range: 10kg, 20kg, 40kg, 80kg
- Tension, compression and bi-directional
- Non-lin./hysteresis: 0.5/0.5% RL
- Dimensions (mm): Ø15 x 8
- Easy installation
- Hardened stainless steel body
About the ALF250 Miniature Load Cell
The ALF250 is ideally suited to force measurements in confined spaces in both tension and compression for control of critical parameters in all kinds of industrial processes. Their versatility is such that they are also applied in a great number of important fields of scientific and engineering test work, mobile as well as workshop, static and dynamic.
We are happy to design variants of this loadcell to meet your specific requirements. Please consult our engineering department.
Geometry: Very small loadbutton cell for force measurement in confined spaces. Used in compression and/or tension on a wide range of OEM or end-user applications.
With bi-directional versions there is a small difference between the output signal for compression and tension. All standard bi-directional loadcells are calibrated in both modes and the output for each direction is stated on the test / calibration certificate.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Bridge resistance | 350 Ω |
| Creep - 20 minutes | ±0.1, % AL |
| Excitation voltage - maximum | 10V |
| Excitation voltage - recommended | 5, V |
| Hysteresis | ±0.5, % RL |
| Insulation resistance - minimum at 50vdc | 500 MΩ |
| Load direction | Tension, compression, bi-directional |
| Measurement range | 10kg, 20kg, 40kg, 80kg |
| Non-linearity - terminal | ±0.5, % RL |
| Overload - safe | 50% RL |
| Overload - ultimate | 100 % RL |
| Rated output - nominal | 1.6, mV/V |
| Rated output - rationalised | 1.0, mV/V |
| Rationalisation tolerance | ±0.5, % RL |
| Repeatability | ±0.1, % RL |
| Sealing | IP65 |
| Temperature effect on rated output per ºc | ±0.005, % AL |
| Temperature effect on zero load output per ºc | ±0.03, % RL |
| Temperature range - compensated | -10 to +50, ºC |
| Temperature range - safe | -10 to +80, ºC |
| Weight - nominal (excluding cable) | 8 to 12g |
| Zero load output | ±4, % RL |
