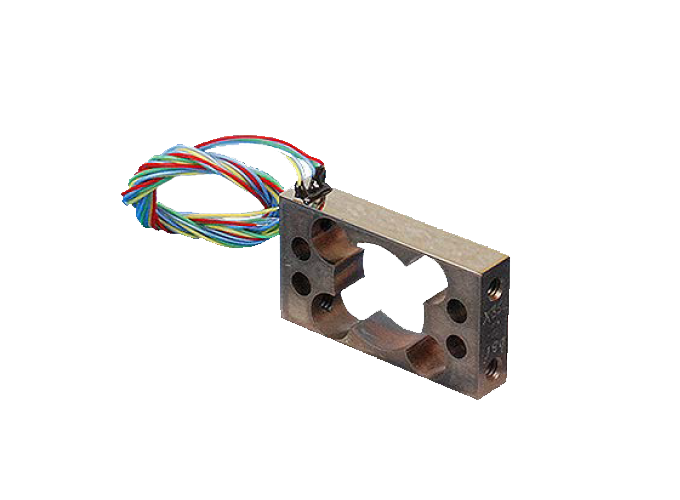

ALS251 Miniature Load Cell

Low profile, single point OEM load cell offering high accuracy


Key features

  • Low Profile
  • Stainless Steel
  • Low Power Consumption
  • Long term stability
  • Economical
  • Low Hysteresis

About the ALS251

The ALS251 Miniature Platform Load Cell is a low profile, single point OEM load cell offering high accuracy. Only 0.71" (18 mm) high, the ALS251 is ideal for medical instruments, low profile scales and other low profile, high resolution applications.

A 3000 ohm thin film strain gauge bridge provides extremely low power consumption for battery and current loop applications. Capacities range from 200 g to 10 kg-force full scale (2 N to 100 N).

Applications

  • Medical Instruments
  • Postal Scales
  • Counting Scales
  • Check Weighing
  • Medical Scales

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Hysteresis: <0.02 % RO
Non-linearity: <0.04 % RO
Non-repeatability: <0.01 % RO
Rated capacity: 0.2 kg, 0.6 kg, 1 kg, 2 kg, 3 kg, 5 kg, 10 kg
Rated output (ro), nominal: 2.0 mV/V
Zero balance: ±0.3 mV/V (optional ±10.02 mV/V)
