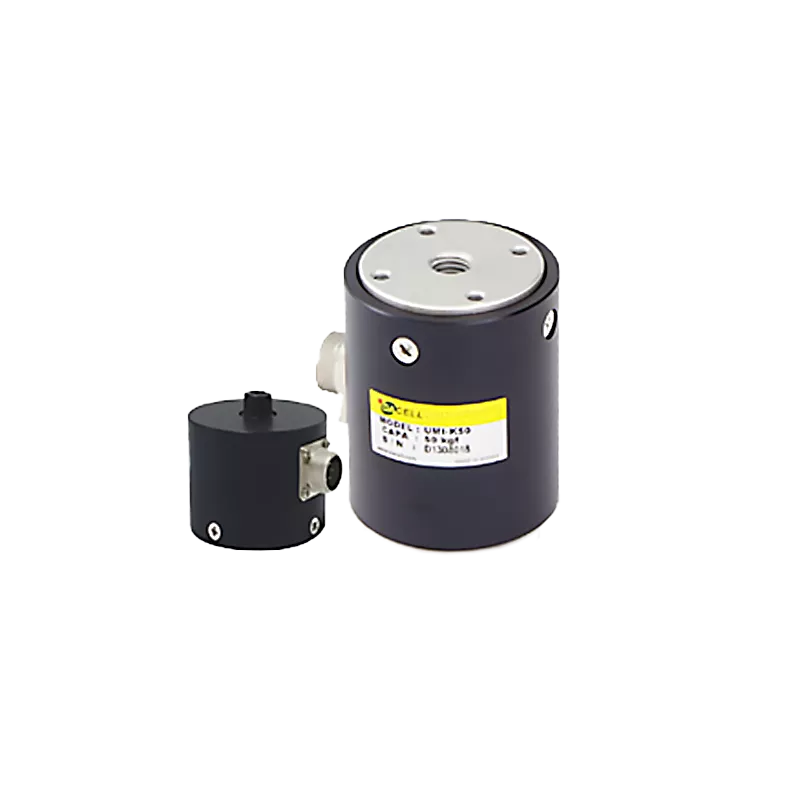

AUMI Miniature Load Cell

Compact strain gauge load cell for tension or compression force measurements with excellent accuracy


Key features

  • Measuring ranges from 0 - 100 g to 0 - 2 t
  • For tensile and compressive loads
  • Non-linearity 0.03 % RO
  • Output signal 2 mV/V ±1 % (5 kg model: 1 mV/V)
  • Supply voltage 10 VDC

About the AUMI Miniature Load Cell

Compact strain gauge transducer for tensile or compressive force measurements with excellent accuracy. Due to the simple force introduction via threaded holes on both sides, the transducer is particularly suitable for use in test and measurement equipment.

Properties

  • Measuring ranges from 0 ... 100 g to 0 ... 2 t
  • For tensile and compressive load
  • Linearity deviation 0.03 % f.s.
  • Output signal 2 mV/V ±1 % (model with 5 kg: 1 mV/V)
  • Supply voltage 10 VDC

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Compensated temperature range -10 ...+50 ℃
Excitation voltage 10V (100g - 5kg=5V)
Hysteresis 0.03% v.E.
Insulation resistance, bridge 2.000 Ω
Non-linearity 0.03% v.E.
Non-repeatability 0.03% v.E.
Rated capacity (r.c.) 100g, 200g, 500g, 1kg, 2kg, 5kg, 10kg, 20kg, 20kg, 100kg, 200kg, 500kg, 1t, 2t
Rated output (r.o.) 2mV/V±1% (100g - 5kg =1mV/V)
Safe temperature range -20 ...+80 ℃
Terminal resistance 350Ω ± 1%
