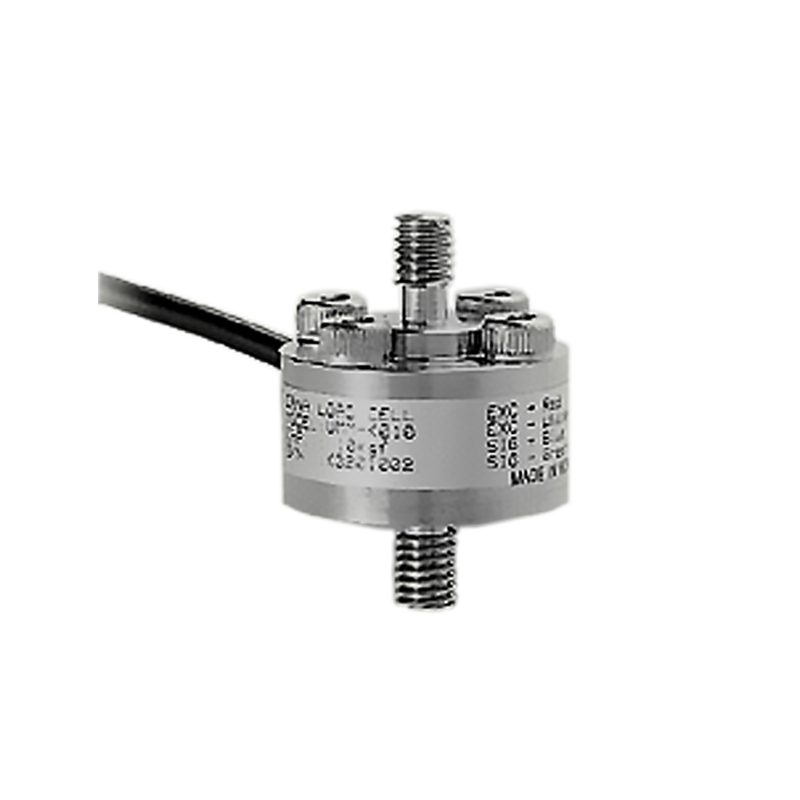

AUMM / AUMMA Miniature Load Cell

Compact strain gauge load cell in miniature design for compression or tension applications with lower measurement accuracy requirements

Key features

Measuring ranges from 0 - 1 kg to 0 - 200 kg
For tensile and compressive loads
Linearity deviation 0.1 % F.S.
Output signal 0.7 - 1.2 mV/V
Supply voltage 5 VDC

About the AUMM / AUMMA Miniature Load Cell

Compact strain gauge load cell in miniature design for compression or tension applications with lower demands on measurement accuracy; especially suitable for simple, non-critical applications that are price sensitive. Easy installation in the application by means of threaded bolts. Protection class IP66.

Properties

Measuring ranges from 0 ... 1 kg to 0... 200 kg
For tensile and compressive load
Linearity deviation 0.1 % f.s.
Output signal 0.7 ... 1.2 mV/V
Supply voltage 5 VDC

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Aumm aumma miniaturkraftaufnehmer en

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
Compensated temperature range	-10 ...+60 ℃
Excitation voltage	5 VDC
Hyteresis	0.1% R.O.
Non-linearity	0.1% R.O.
Non-repeatability	0.1% R.O.
Rated capacity (r.c.)	1, 2, 5, 10, 20, 50, 100, 200 kg
Rated output (r.o.)	0.7 ...1.2 mV/V
Safety temperature range	-20 ...+80 ℃
Terminal resistance input	350 ± 30Ω
Terminal restistance output	350 ± 2Ω
