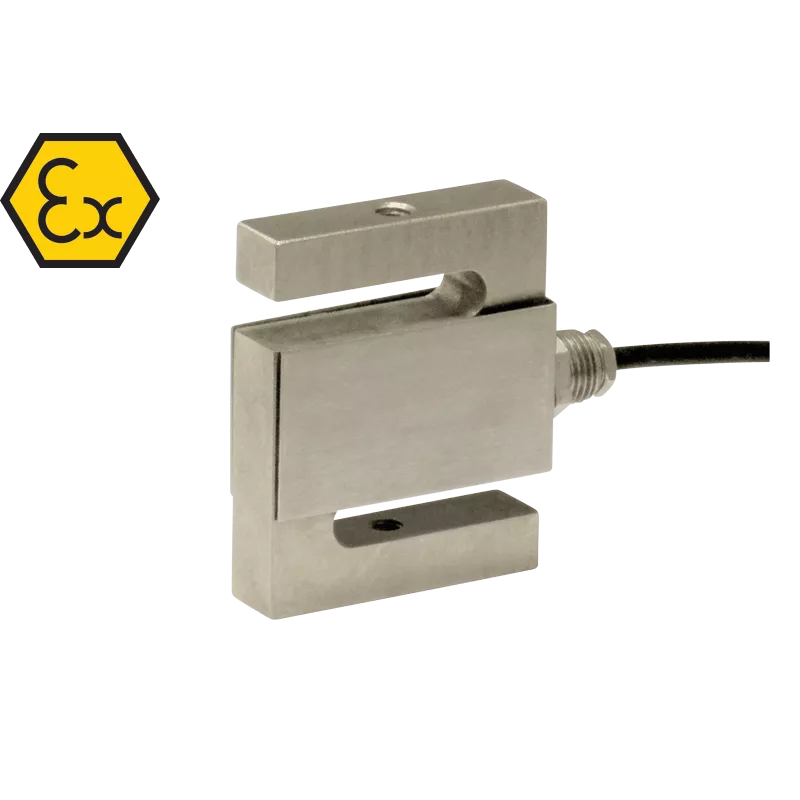

SA S-beam Load Cell
Accuracy class C3
Key features
- Range: 15, 30, 60kg
- Special steel construction
- Combined error < +/-0.2%
- Protection rating IP65
- Accuracy class C3 (OIML R60)
General information
The SA s-shaped load cell is suitable for industrial weighing applications and for precise tension and compression force measurements.
Features
- Measuring ranges: 15, 30, 60kg
- For tension/compression load
- Combined error: < +/-0.2%
- Output signal: normalized 2 mV/V +/-10%.
- Max. Supply voltage: 15 Volt
- Protection class: IP65
- Special steel construction
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Compensated temperature range | - 10°C / + 40°C |
| Creep at nominal load in 4 hours | 0.03 % |
| Deflection at nominal load | 0.2 mm |
| Input resistance | 381 ohm +/-20 |
| Insulation resistance | > 5000 Mohm |
| Max supply voltage without damage | 15 Volt |
| Measurement range | 15, 30, 60kg |
| Operating temperature range | - 20°C / + 60°C |
| Output resistance | 350 ohm +/- 4 |
| Rated output | 2 mV/V +/-10% |
| Safe overload (% of full scale) | 120 % |
| Temperature effect on span | 0.0013 % / °C |
| Temperature effect on zero | 0.0017 % / °C |
| Ultimate overload (% of full scale) | > 300 % |
| Zero balance | +/- 1 % |
