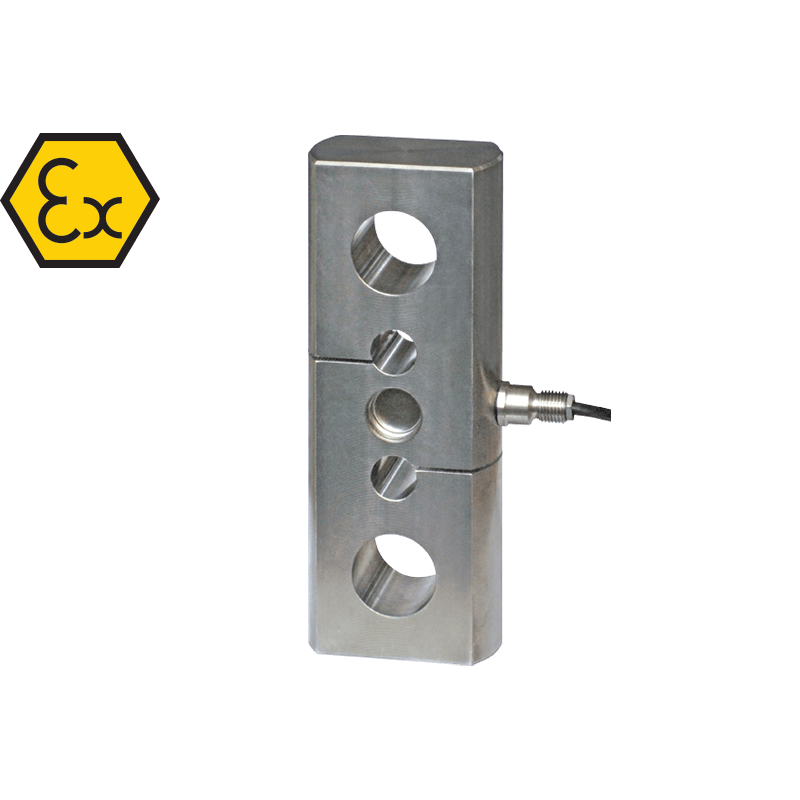

TAL Tension Load Cell
Holes for standard shackles
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Combined error | ≤±0.03% |
| Compensated temperature range | -10 °C / +50 °C |
| Creep at nominal load in 30 minutes | 0.03% |
| Deflection at nominal load | 0.3 mm |
| Input resistance | 350 Ω ±5 |
| Insulation resistance | >5000 MΩ |
| Material | AISI 420 stainless steel |
| Max supply voltage without damage | 15 V |
| Nominal load (e max) | 5000 - 10000 - 20000 kg |
| Operating temperature range | -20 °C / +70 °C |
| Output resistance | 350 Ω ±5 |
| Protection class | IP68 |
| Rated output | 2 mV/V ±0.1% |
| Safe overload (% of full scale) | 150% |
| Temperature effect on span | 0.003% °C |
| Temperature effect on zero | 0.005% °C |
| Ultimate overload (% of full scale) | 300% |
| Zero balance | ±1% |
