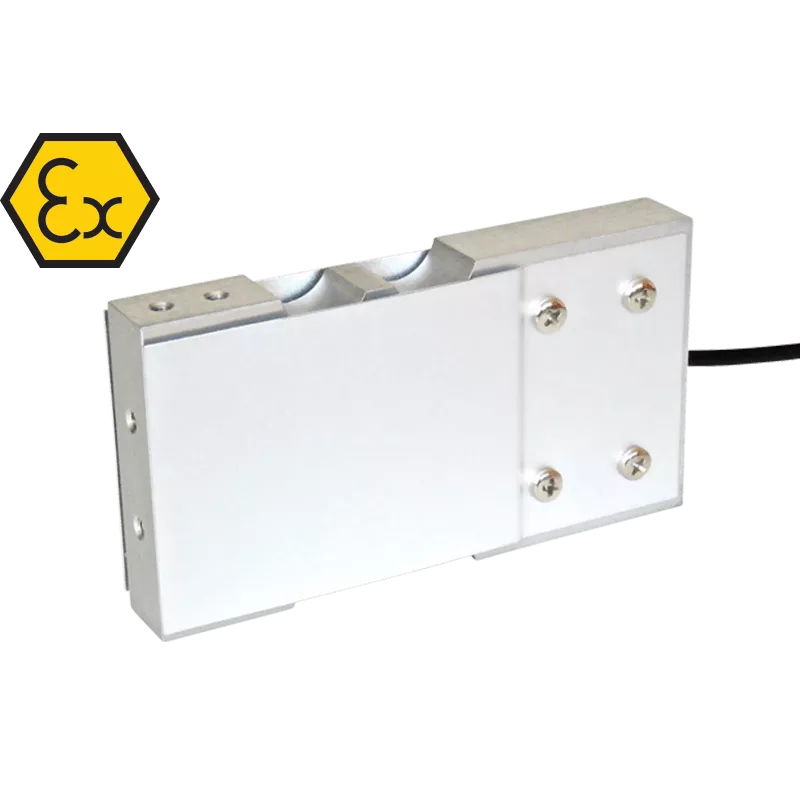

AU Single Point Load Cell

For platforms 250x400mm / 400x600mm


Key features

  • Range: 3 to 15kg (platforms 250 x 400 mm) and 30 to 50kg (platforms 400 x 600 mm)
  • Aluminium alloy loadcell
  • Combined error < +/- 0.02%
  • Protection class IP65

General information


Aluminum measuring cell for platforms of 250x400mm and 400x600mm.

  • Measuring ranges: 3 to 15kg (platforms 250 x 400mm) and 30 to 50kg (platforms 400 x 600mm)
  • Aluminum construction
  • Combined error: < ±0.02%.
  • Protection class IP65

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Combined error ≤±0.02%
Compensated temperature range -10 °C / +40 °C
Creep at nominal load in 30 minutes 0.025%
Deflection at nominal load 0.5 mm
Input resistance 410 Ω ±10
Insulation resistance >2000 MΩ
Material Aluminum alloy
Max supply voltage without damage 15 V
Nominal load (eₘₐₓ) 3 - 6 - 15 - 30 - 50 kg
Operating temperature range -20 °C / +60 °C
Output resistance 350 Ω ±3
Protection class IP65
Rated output 2 mV/V ±10%
Safe overload (% of full scale) 120%
Temperature effect on span 0.0025% °C
Temperature effect on zero 0.0025% °C
Ultimate overload (% of full scale) 200%
Zero balance ±2%
