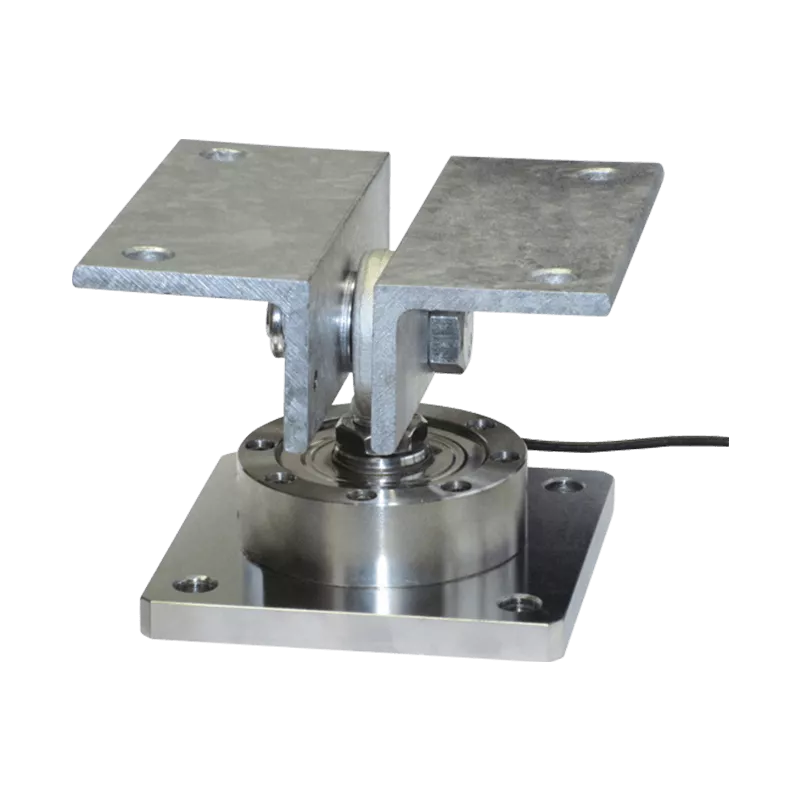

PSCLS-2000 Mounting Kit for Loadcells
Hot worked galvanized mounting kit designed for silos, mixing machines, tanks, hoppers subject to vibrations because of parts in motion
Key features
- Range: 1000 to 5000kg
- For loadcells CLS
- AISI 304 stainless steel or hot worked galvanized upper plate
- AISI 304 stainless steel lower plate
- Adjustable height
Features PSCLS-2000 Mounting Kit
- Constraint against lateral forces and anti-tilt by ball-and-socket joint
- Misalignment compensation of the support plates structure
Applications for PSCLS-2000
Hot worked galvanized mounting kit designed for silos, mixing machines, tanks, hoppers subject to vibrations because of parts in motion. Provided with a ball joint, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates.
Max static load 5000 kg.
