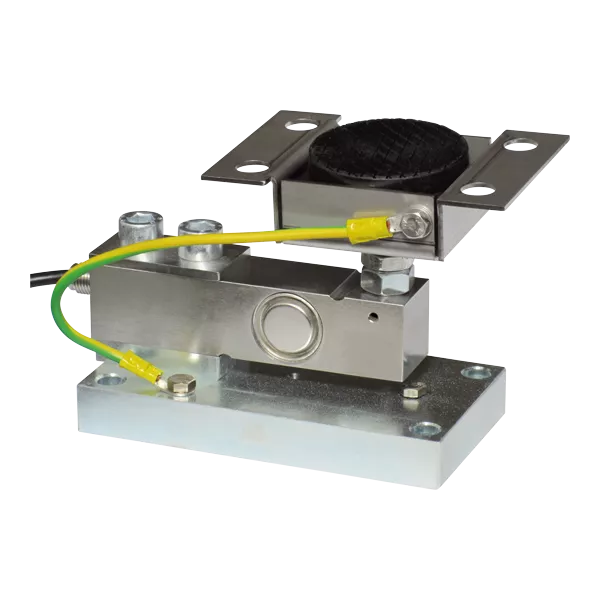

PV / PVZ Mounting Kit for Loadcells
Provided with a self-centring joint foot, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates
Key features
- Range: 75 to 2000kg
- For loadcells FTKL, FTP/-P, FTK, FTZ, FTL
- Galvanized steel self-centering joint foot.
- Misalignment compensation of the support plates structure.
- Adjustable height.
- Locking screw to avoid damage during transport and installation.
Other features PV/PVZ Mounting Kit
- Adjustable upper plate in AISI 304 stainless steel (PPV).
- Lower plate and block in AISI 304 stainless steel (PV) or galvanized steel (PVZ)
- Constraint against lateral forces and anti-tilt by in (TF-PV, TFPV-2000) AISI 304 stainless steel or (TF-PVZ)
Applications for PV/PVZ
Mounting kit designed for rollers, platforms, tanks, hoppers, etc..; provided with a self-centering joint foot, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates.
Max static load 2000 kg.
