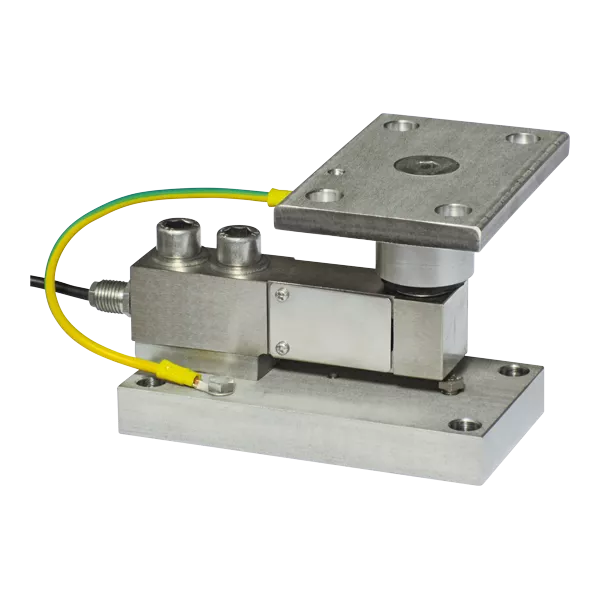

TF500-2000 Mounting Kit for Loadcells
Constructed of AISI 304 stainless steel
Key features
- Range: 75 to 2000kg
- For loadcells FTKL, FTP/-P, FTK, FTZ, FTL
- Misalignment compensation of the support plates structure.
- Adjustable height.
- Locking screw to avoid damage during transport and installation.
Other features TF500-2000 Mounting Kit
- Upper plate with a compression joint in AISI 304 stainless steel and rubber.
- Lower plate and block in AISI 304 stainless steel (TF500, TF2000) or in galvanized steel (TF2000Z).
Applications for TF500-2000
Mounting kits constructed of AISI 304 stainless steel (*2000Z : version with PIATF2000Z and BLOCTFZ constructed of galvanized steel); designed for tanks, hoppers, platforms, etc..; provided with a compression joint in AISI 304 stainless steel and rubber, to compensate for misalignment of the support plates.
Max static load 500/2000 kg.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
