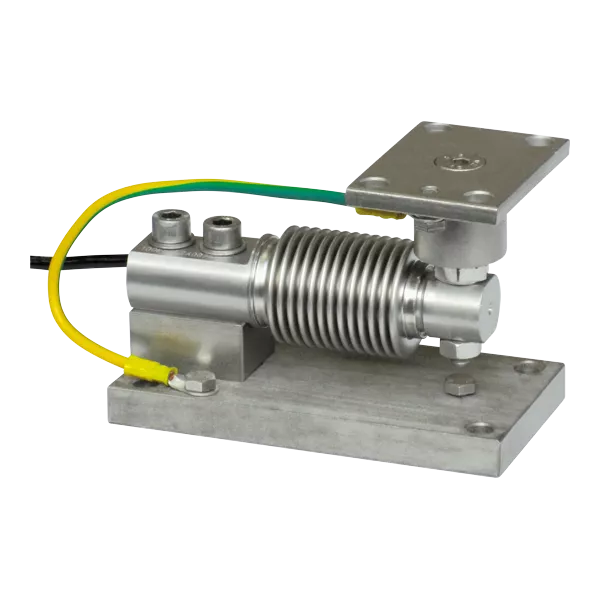

TFC GP Mounting Kit for Loadcells
Designed for small tanks, hoppers, platforms and more
Key features
- Range: 5 to 500kg
- For loadcells FCL, FCOL, FCK
- Upper plate with a compression joint in AISI 304 stainless steel and rubber
- Lower plate and block in AISI 304 stainless steel
- Misalignment compensation of the support plates structure
- Adjustable height
- Locking screw to avoid damage during transport and installation
Applications for TFC GP
Mounting kit designed for small tanks, hoppers, platforms, etc. AISI 304 stainless steel upper plate with a compression joint + rubber, to compensate for misalignment of the support plates.
Max static load 500 kg.
