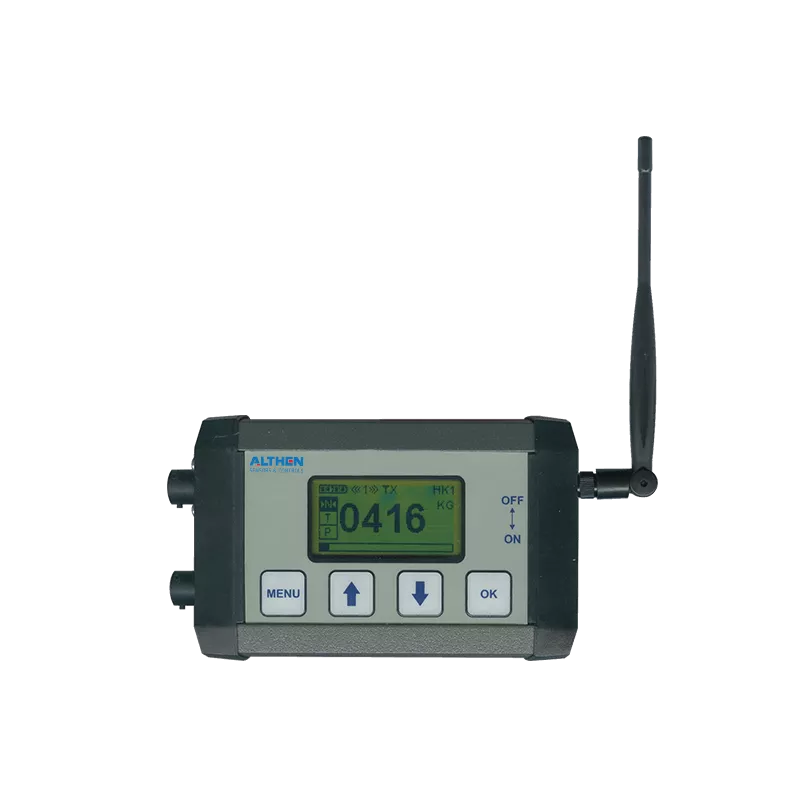

AWL-CD Cabin Display
Small cabin mounted display to be used with the wireless load sensors
Key features
- Reflective, sunlight readable LCD display
- Optional analog output for cirscale meters
- External antenna
- Units displayed: Tonne, Ton, Kg, lbs
- RAM® 1” ball mount. Base options on request
- Multiple display views. Digital, Analog Bar
- Tare function to zero out weight of equipment
About the AWL-CD
The sensor Cabin Display is a small lightweight, cabin/window mounted unit which is used in conjunction with the wireless load sensors to show the current load on the screen.
Using the 2.4GHz license free band to receive the load sensor signal, it can display the load value in several views which are user selectable. It also allows the user to tare off any equipment weight to display just the load value of the cargo.
The system can operate from its rechargeable battery and does not need to be hard wired, enabling the equipment to be easily transferred between installations. The display can be operated and charged from an 11 to 28V supply.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Battery type | Li-Ion NB-5L |
| Charge time | 1 hour |
| Connector | Type 62IP industrial connectors |
| Current | 300mA @ 28V |
| External aerial connector | SMA |
| Operating time | 50 hours |
| Optional extras | Analog output connector, analog meter display |
| Screen | Reflective, sunlight readable LCD |
| Voltage | 11-28V |
