AWL-HR Handheld Receiver
Handheld receiver to be used with the wireless loadlink series
Key features
- Reads multiple load sensors
- Receives data up to a distance of 100m
- Receives data at 10 times a second
- Internal 16MBit memory
- Connect to PC via USB for user setup
- Output data via USB

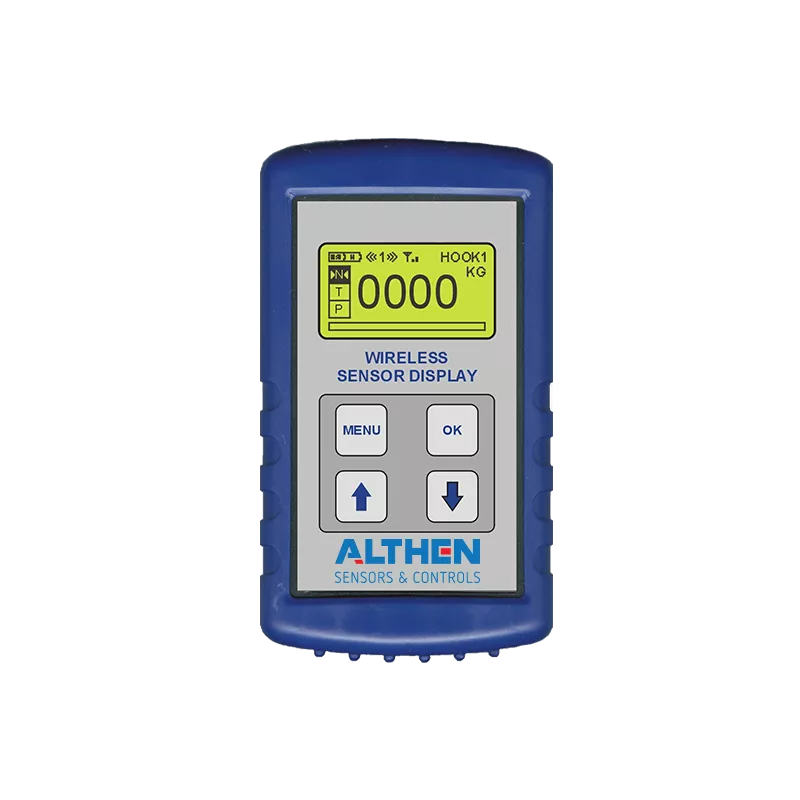

About the AWL-HR Handheld Receiver- Display
The AWL-HR wireless Handheld Receiver- Display is used with the wireless loadlink series. It provides the user with an easy way to receive and view data from the load sensor.
Up to 9 load sensors can be selected from the handheld receiver and individually displayed. These load sensors can be named by pluggin the load sensor into a PC via USB and using the load sensor software.
Then they can be easil6y distinguished on the display, which will show the name of the load sensor currently being read.
The display shows the name of the current load sensors, the load, battery status of readout and load sensor and signal strength. By using the menu tree on the readout the user can select which load sensor to read, what units to be displayed, tare the data, display peak value and many more functions.
A USB mini B is provided to charge the battery and output data to PC.
Other features AWL-HR Handheld Receiver
- Ruggedized rubber case with back stand
- Long life rechargeable battery powered
- Internal over/under limit warning alarm
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Charge time | TBC |
| Connector | SMA |
| Connector | USB mini B |
| Environmental protection | IP54 |
| Frequency range | 2425 - 2430 MHz 20 channels 250kHz steps |
| Materials | Plastic |
| Operating temp range | -10ºC to + 50ºC |
| Receiver sensitivity | -89dBm |
| Rfi/ecm | To EN301-489 1 |
| Storage temperature range | -20ºC to + 60ºC |
| Type | Li-Ion |
| Voltage | 3.7V 2200mAH |
| Voltage | 5 VDC |
| Weight | 350 Gramms |
