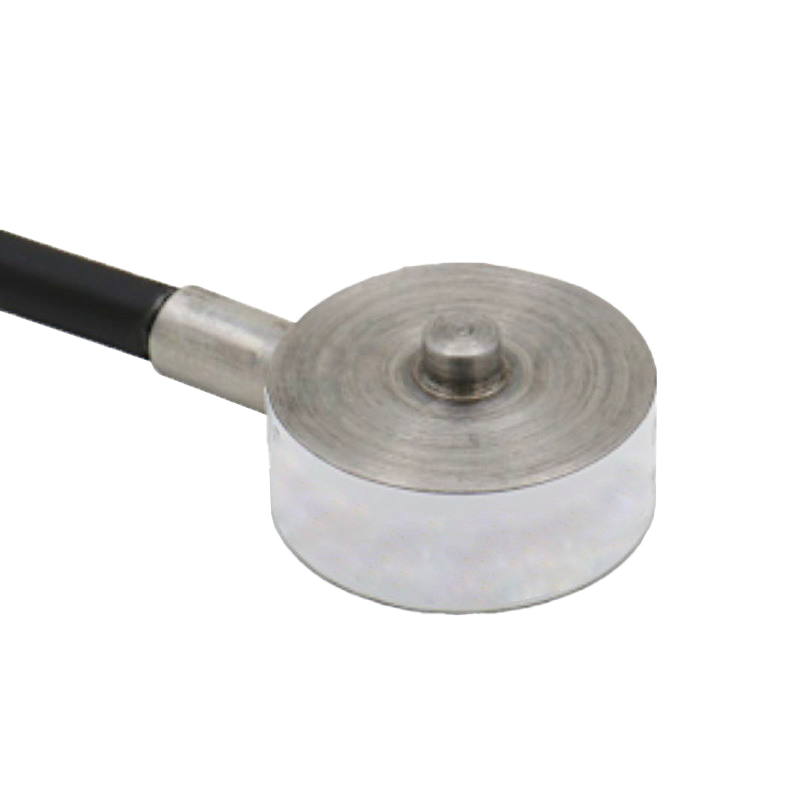

ALF250 Miniature Force Sensor

Miniature diaphragm loadcell

3D-tittare för stegfiler

Fördelar med

  • Realistisk representation och bättre visualisering av utrymmet
  • Tidig upptäckt av installationsproblem
  • Värdefulla data för efterföljande processer
  • Förbättring av teknisk dokumentation
 Se tekniska specifikationer

Nyckelfunktioner

  • Miniature diaphragm loadcell
  • Measurement ranges: 100N, 200N, 400N, 800N
  • Tension, compression & bi-directional calibration
  • Non-lin./hysteresis: 0.5/0.5% RL
  • Dimensions (mm): Ø15 x 8
  • Easy installation
  • Hardened stainless steel body

About the ALF250 Miniature Force Sensor

The ALF250 is ideally suited to force measurements in confined spaces in both tension and compression for control of critical parameters in all kinds of industrial processes. Their versatility is such that they are also applied in a great number of important fields of scientific and engineering test work, mobile as well as workshop, static and dynamic.

We are happy to design variants of this loadcell to meet your specific requirements. Please consult our engineering department.

Geometry: Very small loadbutton cell for force measurement in confined spaces. Used in compression and/or tension on a wide range of OEM or end-user applications.

With bi-directional versions there is a small difference between the output signal for compression and tension. All standard bi-directional loadcells are calibrated in both modes and the output for each direction is stated on the test / calibration certificate.

Behöver du den här sensorn till ditt nästa projekt?

Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.

Begär en offert

  • Snabb respons från en teknisk försäljningsingenjör
  • Skräddarsytt erbjudande
  • Kostnadsfri teknisk rådgivning

ALF250 Miniature Force Sensor

 Prata med en expert

Produktnedladdningar

Få det på ditt sätt

Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.

Prata med en expert

Tekniska specifikationer

Specifikation Värde
Bridge resistance 350 Ω
Creep - 20 minutes ±0.1, % AL
Excitation voltage - maximum 10V
Excitation voltage - recommended 5, V
Hysteresis ±0.5, % RL
Insulation resistance - minimum at 50vdc 500 MΩ
Load direction Tension, compression, bi-directional
Measurement ranges 100N, 200N, 400N, 800N
Non-linearity - terminal ±0.5, % RL
Overload - safe 50 % RL
Overload - ultimate 100 % RL
Rated output - nominal 1.6, mV/V
Rated output - rationalised 1.0, mV/V
Rationalisation tolerance ±0.5, % RL
Repeatability ±0.1, % RL
Sealing IP65
Temperature effect on rated output per ºc ±0.005, % AL
Temperature effect on zero load output per ºc ±0.03, % RL
Temperature range - compensated -10 to +50, ºC
Temperature range - safe -10 to +80, ºC
Weight - nominal (excluding cable) 8 to 12g
Zero load output ±4, % RL
