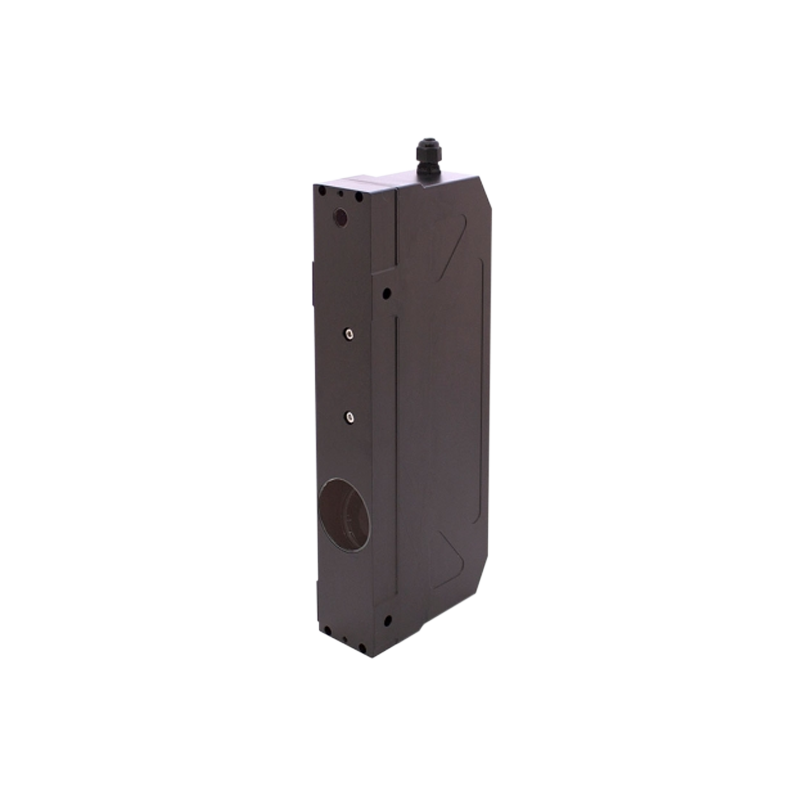

FDRF6001 Series Laser Triangulation Sensor
High accuracy laser triangulation sensor with large base
Nyckelfunktioner
- Measuring range: up to 20 mm and 50 mm
- ±0.05% of the range accuracy
- Class 2 Blue laser
About the FDRF6001 Series Laser Triangulation Sensor
The FDRF6001 is a newly developed triangulation laser sensor. The new sensor is intended for use in conditions where it is necessary to make high precision measurements of objects placed at large distance from the sensor either because of restricted space or high surround temperature.
To solve this a special large aperture long focus lens is used which results in a noticeable size increase compared to the FDRF600.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Accuracy | ±0.05% of the range |
| Base distances | 535mm and 540mm |
| Blue laser | Class 2 |
| Decreased round laser spot size less than | 0.7mm diameter |
| Measured ranges | 50 and 20mm |
