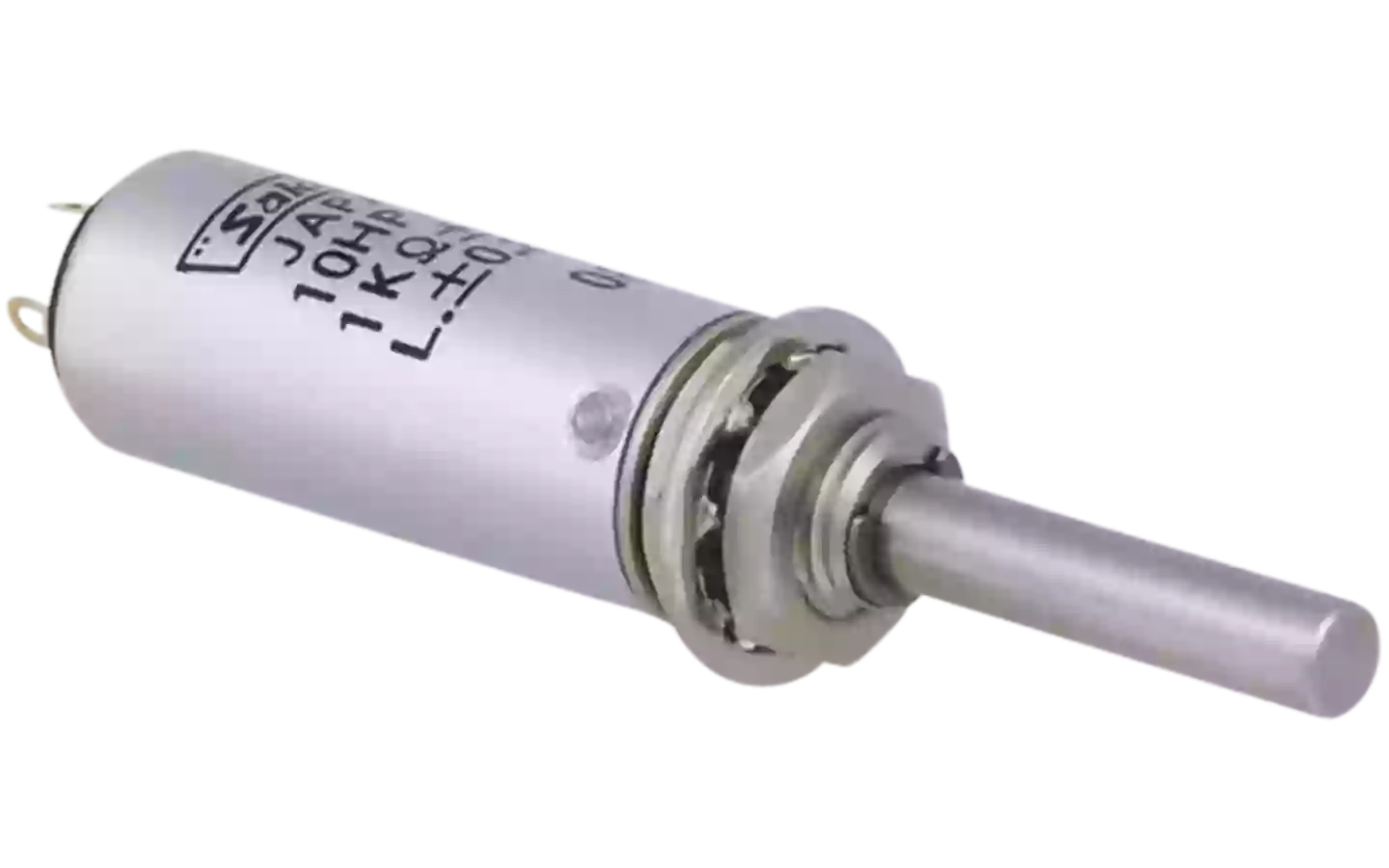

10HP Multi-turn Potentiometer

World's smallest 10-turn Potentiometer (5-turn and 10-turn)

Se tekniska specifikationer

Nyckelfunktioner

  • Wirewound
  • Dimensions (mm) DxL: 10.5×19.2 / 10.5×25.5
  • Resistance range (ohm): 100Ω -20kΩ / 100Ω -50kΩ
  • Linearity (±%): 0.35 to 0.2 / 0.25 to 0.1
  • Mechanical travel (+10° 0°): 1,800 +30° 0° /
    3,600 +30° 0°
  • Electrical travel (±5°): 1,800 / 3,600

About the 10HP Multi-turn Potentiometer

The Multi-turn Potentiometer 10HP is world's smallest 10-turn potentiometer. The potentiometer is available in 5-turn models and 10-turn models.

Features Multi-turn potentiometer 10HP-5

  • Wirewound
  • Dimensions (mm) DxL: 10.5×19.2
  • Standard resistance range (ohm): 100Ω -20kΩ
  • Independent linearity (±%): 0.35 to 0.2
  • Mechanical travel (+10° 0°): 1,800 +30° 0°
  • Electrical travel (±5°): 1,800

Features Multi-turn potentiometer 10HP-10

  • Wirewound
  • Dimensions (mm) DxL: 10.5×25.5
  • Standard resistance range (ohm): 100Ω -50kΩ
  • Independent linearity (±%): 0.25 to 0.1
  • Mechanical travel (+10° 0°): 3,600 +30° 0°
  • Electrical travel (±5°): 3,600

Special Specifications Available

3turn type (S10HP3), lower resistance values (20Ω, 50Ω), shaft dia. (ø3.175mm) · bushing with inch dimensions, special machining on the shaft, shaft with front and rear extension (rear shaft with 0.8mm dia. and 10mm length).

Behöver du den här sensorn till ditt nästa projekt?

Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.

Begär en offert

  • Snabb respons från en teknisk försäljningsingenjör
  • Skräddarsytt erbjudande
  • Kostnadsfri teknisk rådgivning

10HP Multi-turn Potentiometer

 Prata med en expert

Få det på ditt sätt

Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.

Prata med en expert

Tekniska specifikationer

Specifikation Värde
(within 5kΩ): (±0.25%) (±0.15%)
Precision Class: ±0.2% ±0.1%
Dielectric strength 1 minute at 500 V.A.C.
Electrical travel 360º Xn ±5º (n: No. of turns)
Independent linearity tolerance (5-turn 10-turn) Standard Class: ±0.35% ±0.25%
Insulation resistance Over 100 MΩ at 500 V.D.C.
Mass Approx. 17g (5-turn), Approx. 20g (10-turn)
Max. practical resistance value 50kΩ (5turn), 100kΩ (10turn)
Max. torque exerted on fastening the mounting nut to the bushing Within 1N·m (10kgf·cm)
Max. working voltage 450 V
Mechanical travel 360º Xn + 30º 0° (n: No. of turns)
Noise Within 100O E.N.R.
Power rating 0.5W (5-turn), 1.0W (10-turn)
Resist. temp. coefficient of wire ±20p.p.m./ºC
Shaft dia. (mm) 4
Standard resistance range 100Ω to 20kΩ (5turn), 100Ω to 20kΩ (10turn)
Starting torque Within 3mN·m (30gf·cm)
Stopper strength Approx. 0.1N·m (1kgf·cm)
Total resistance tolerance Standard Class ±3%(H), Precision Class ±1%(F)
