  5. 12HHPS Multi-turn Potentiometer

12HHPS Multi-turn Potentiometer

Hybrid Multi-turn Potentiometer (Servomount) 10-turn


Nyckelfunktioner

  • Hybrid
  • Dimensions (mm) DxL: 13x25.5
  • Resolution: Essentially infinite
  • Independent linearity (±%): 0.4 to 0.1
  • Mechanical travel (+10° 0°): 3,600 +15° 0°
  • Electrical travel (±5°): 3,600

About the 12HHPS Multi-turn Potentiometer

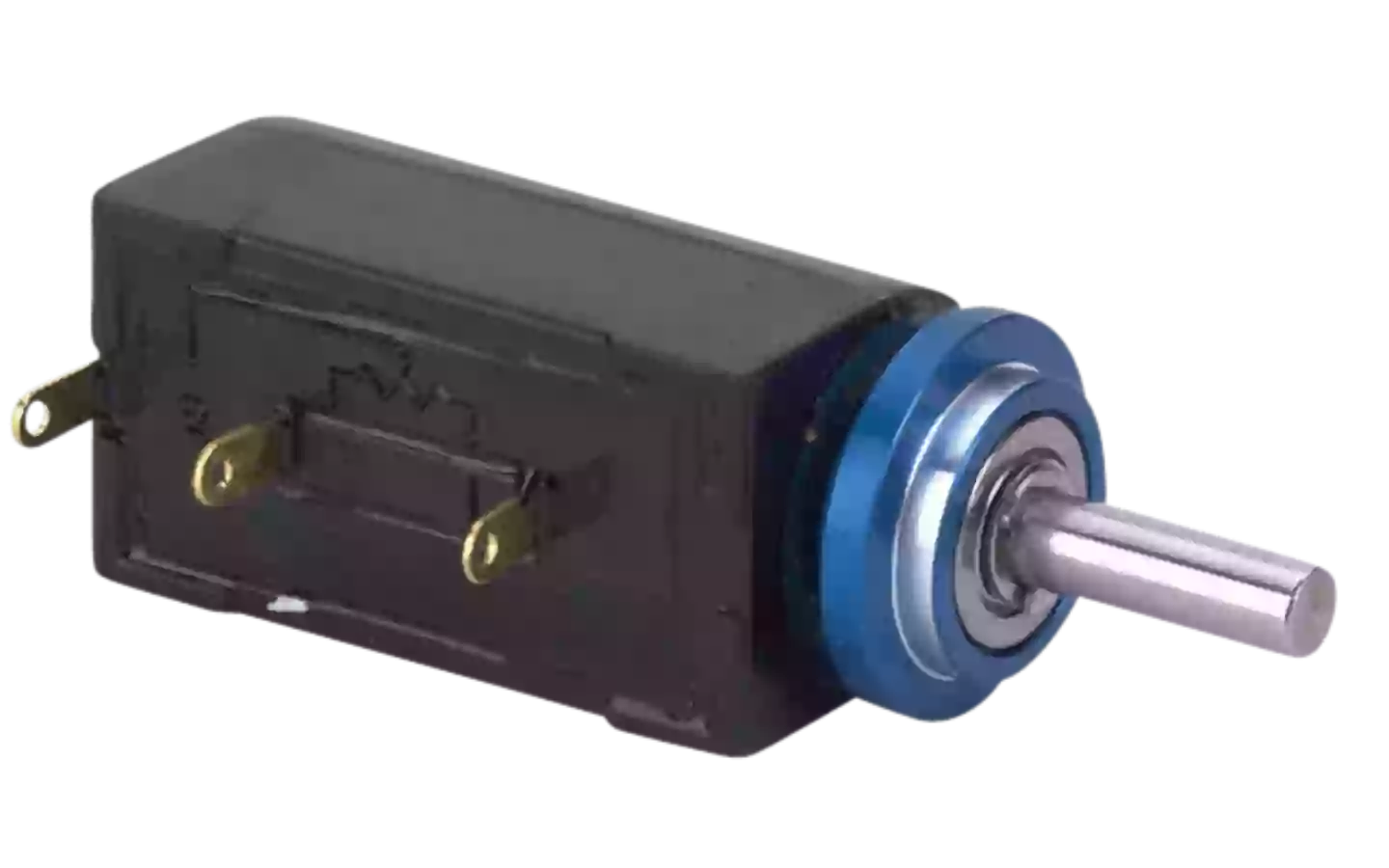

The 12HHPS is a small size, high resolution, long-life servomount potentiometer with an outer diameter of 13mm.

Bushingmount type

  • With lug terminals: 12HHP
  • With pin terminals for pc board: 12HHP-10P

Servomount type

  • 12HHPS-10

Special Specifications Available

5-turn type (S12HHP-5), shaft with front and rear extension (rear shaft with 0.8mm dia. and 10mm length), special machining on the shaft, simple sealed housing (in case of servomount type, the housing length becomes longer by 1.5mm).

Behöver du den här sensorn till ditt nästa projekt?

Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.

Prata med en expert

Få det på ditt sätt

Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.

Prata med en expert

Tekniska specifikationer

Specifikation Värde
Contact resistance variation Within 5% C.R.V.
Dielectric strength 1 minute at 1,000 V.A.C.
Electrical travel 3,600º ±5º
Independent linearity tolerance Standard Class ±0.4%, Precision Class ±0.1% (±0.2% in case of within 5kΩ)
Insulation resistance Over 1,000MΩ at 500V.D.C.
Mass Approx. 109
Max. practical resistance value 100kΩ
Max. torque exerted on fastening the mounting nut to the bushing Within 0.8mN·m (80kgf·cm)
Max. working voltage 450V
Mechanical travel 3,600º +15º
Output smoothness Within 0.05% against input voltage
Power rating 1.0 W
Resistance temp. coefficient ±100p.p.m./ºC
Resolution Essentially infinite
Shaft dia. (mm) 3
Standard resistance values 2k, 5k, 10k, 20k, 50k (Ω)
Starting torque Within 3mN·m (30gf·cm) (Bushingmount type), Within 2mN·m (20gf·cm) (Servomount type)
Stopper strength Approx. 0.15N·m (15kgf·cm)
Total resistance tolerance Standard Class ±10%(K), Precision Class ±5%(J)
