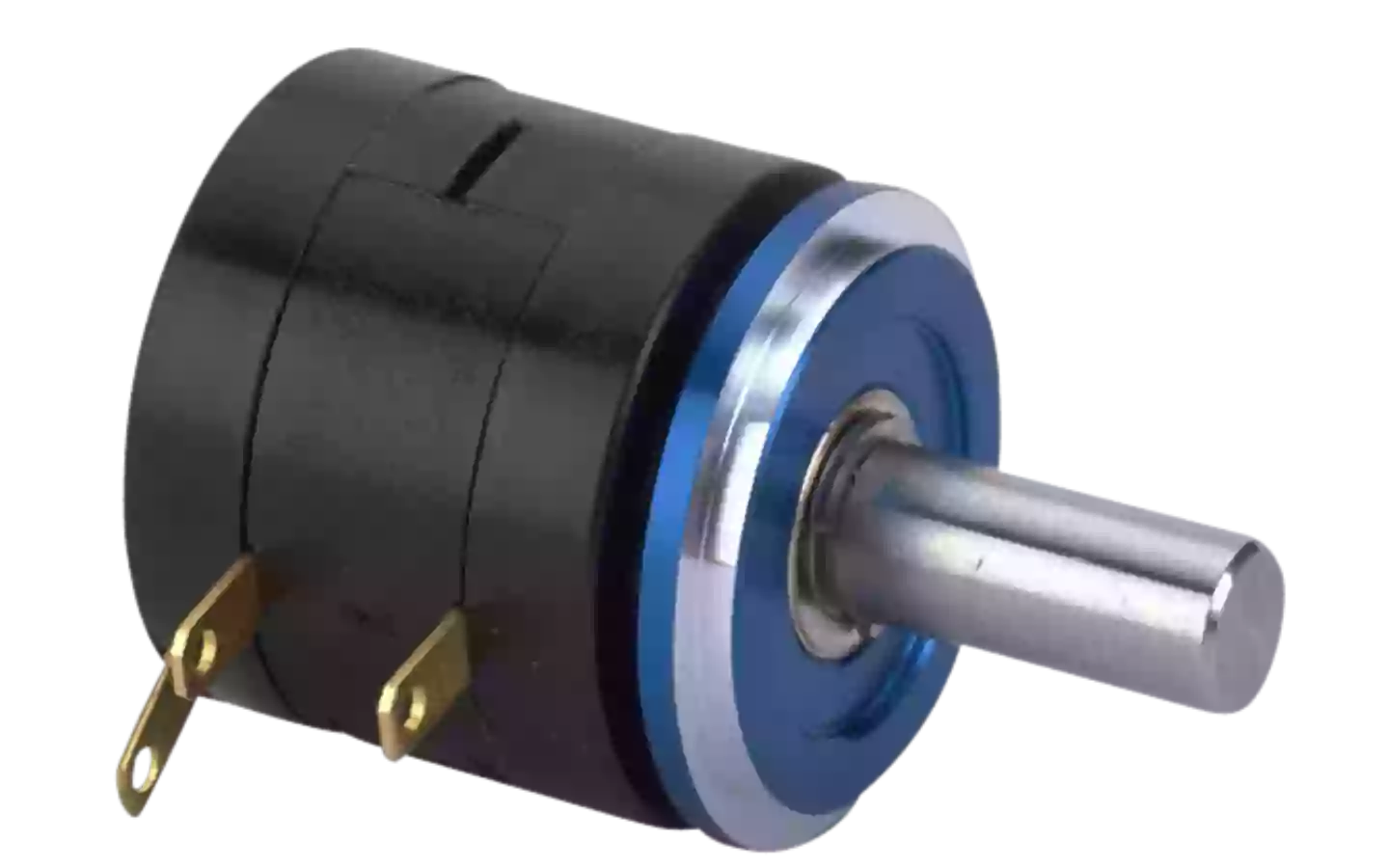

22HHPS Multi-turn Potentiometer

Hybrid Potentiometer (Servomount) 5-turn and 10-turn


Nyckelfunktioner

  • Hybrid
  • Dimensions (mm) DxL: 22×19
  • Resolution: Essentially infinite
  • Independent linearity (±%): 0.35 to 0.2
  • Mechanical travel (+10° 0°): 3,600
  • Electrical travel (±5°): 3,600

About the 22HHPS Multi-turn Potentiometer

The 22HHPS is a low-cost, high resolution and long life servomount potentiometer with an outer diameter of 22mm.

Bushingmount type:

  • 5-turn models: 22HHP-5, 22HHP-5M, 22HHP-5E, 22HHP-5N
  • 10-turn models: 22HHP-10, 22HHP-10M, 22HHP-10E, 22HHP-10N

Servomount type:

  • 5-turn models: 22HHPS-5
  • 10-turn models: 22HHPS-10

Special Specifications Available

Shaft with front and rear extension (rear shaft with 6mm dia. and 15mm length), 3-turn type, multi-ganged (available up to 10-gangs), with high torque, special shaft dia. (ø3mm, ø3.175mm, ø4mm, ø5mm, ø6.35mm), special machining on the shaft, with plastic shaft, metal bushing type (22HHPM with anti-rotation pin), simple sealed housing, extra taps (available up to 1 tap only for 10turn), slippingclutch incorporated type (20mN·m~60mN·m).

Behöver du den här sensorn till ditt nästa projekt?

Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.

Prata med en expert

Få det på ditt sätt

Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.

Prata med en expert

Tekniska specifikationer

Specifikation Värde
Precision Class: ±0.2% ±0.1%
Contact resistance variation Within 5% C.R.V. (5-turn), Within 3% C.R.V. (10-turn)
Dielectric strength 1 minute at 1,000 V.A.C.
Electrical travel 360º X n ±5º (n: No. of turns)
Independent linearity tolerance (5-turn 10-turn) Standard Class: ±0.35% ±0.25%
Insulation resistance Over 100MΩ at 1,000V.D.C.
Mass Approx. 20g (Bushingmount), Approx. 30g (Servomount) (both 5-turn and 10-turn)
Max. torque exerted on fastening the mounting nut to the bushing Within 1.0N·m (10kgf·cm) (in case of panel thickness with over 2.5mm, the rotating torque may become heavier)
Max. working voltage 500V
Mechanical travel 360º X n (+10º n: No. of turns)
Output smoothness Within 0.05% against input voltage (5-turn), Within 0.015% against input voltage (10-turn)
Power rating 1.0W (5-turn) 2.0W (10-turn)
Resistance temp. coefficient ±100p.p.m./ºC
Resolution Essentially infinite
Shaft dia. (mm) 6
Standard resistance values 1k, 2k, 5k, 10k, 20k, 50k (Ω) (5turn). 2k, 5k, 10k, 20k, 50k, 100k (Ω) (10turn)
Starting torque Within 5mN·m (50gf·cm)
Stopper strength Approx. 0.9N·m (9kgf·cm)
Total resistance tolerance Standard Class ±10%(K), Precision Class ±5%(J)
