FCP12A Single-turn Potentiometer
Conductive Plastic - Servomount
About the FCP12A Single-turn Potentiometer- Conductive plastic (servomount)

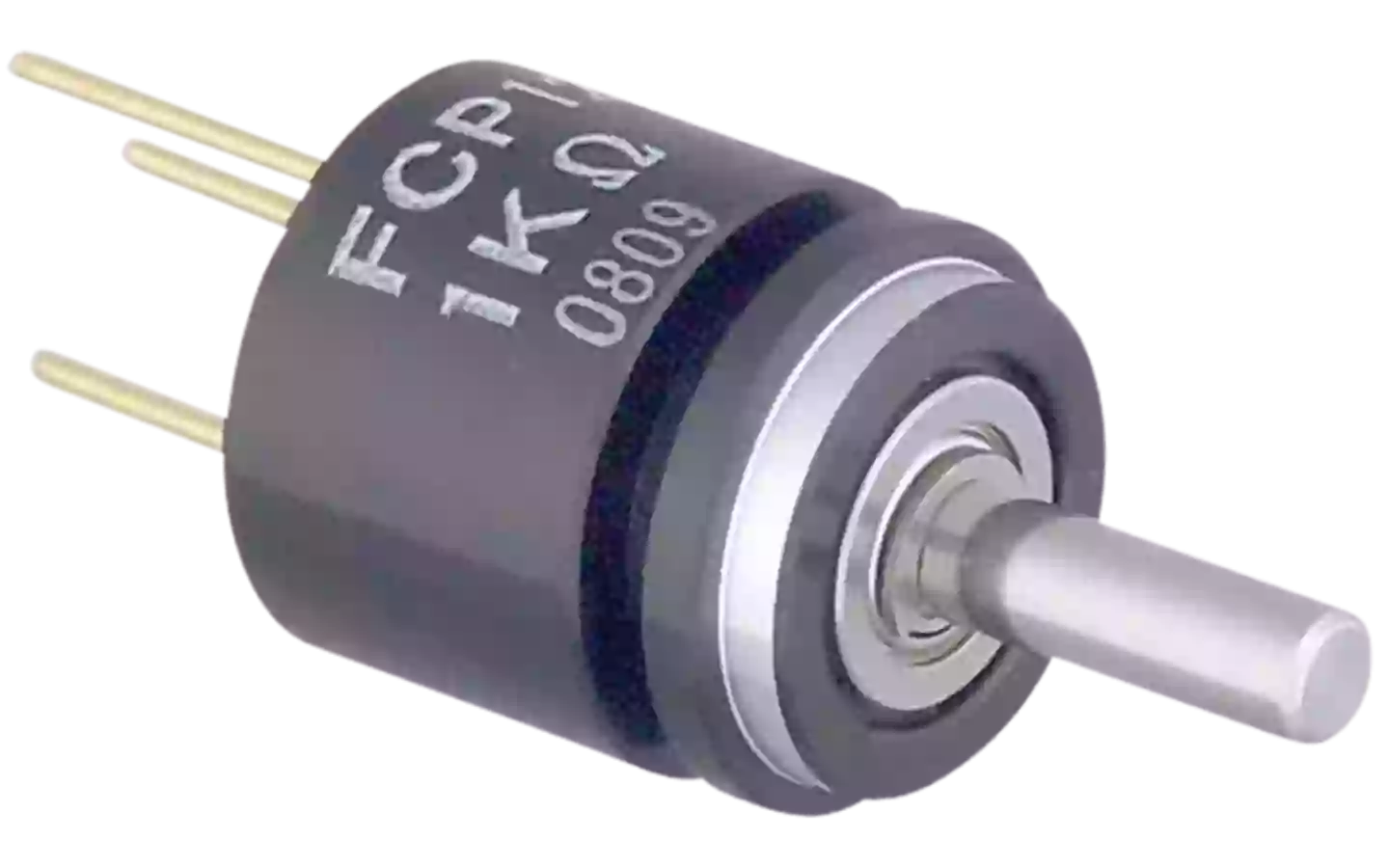

The FCP12A is a servomount type potentiometer with ball bearings and rear extended pin terminals.
Special Specifications Available
Extra taps (available up to 1 tap), shaft with front and rear extension (rear shaft with 1mm dia. and 10mm length), with stopper (rotating angle becomes 310º and stopper strength is 0.3N·m [3kgf·cm]), special electrical travel, shaft dia. (ø3.175mm) bushing with inch dimensions, special machining on the shaft.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Contact resistance variation | Within 3% C.R.V. |
| Dielectric strength | 1 minute at 500 V.A.C. |
| Electrical travel | 300º ±5º |
| Independent linearity tolerance | Standard Class ±2.0%, Precision Class ±1.0% |
| Insulation resistance | Over 1,000MΩ at 500 V.D.C |
| Mass | Approx. 5g |
| Mechanical travel | 360º (Endless) |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 0.2W |
| Resistance temp. coefficient | ±400p.p.m./ºC |
| Resolution | Essentially infinite |
| Special practical resistance values | 500, 20k, 50k, 100k (Ω) |
| Standard resistance values | 1k, 2k, 5k, 10 k (Ω) |
| Starting torque | Within 1mN·m (10gf·cm) |
| Total resistance tolerance | Standard Class ±15% (L), Precision Class ±10% (K) |
