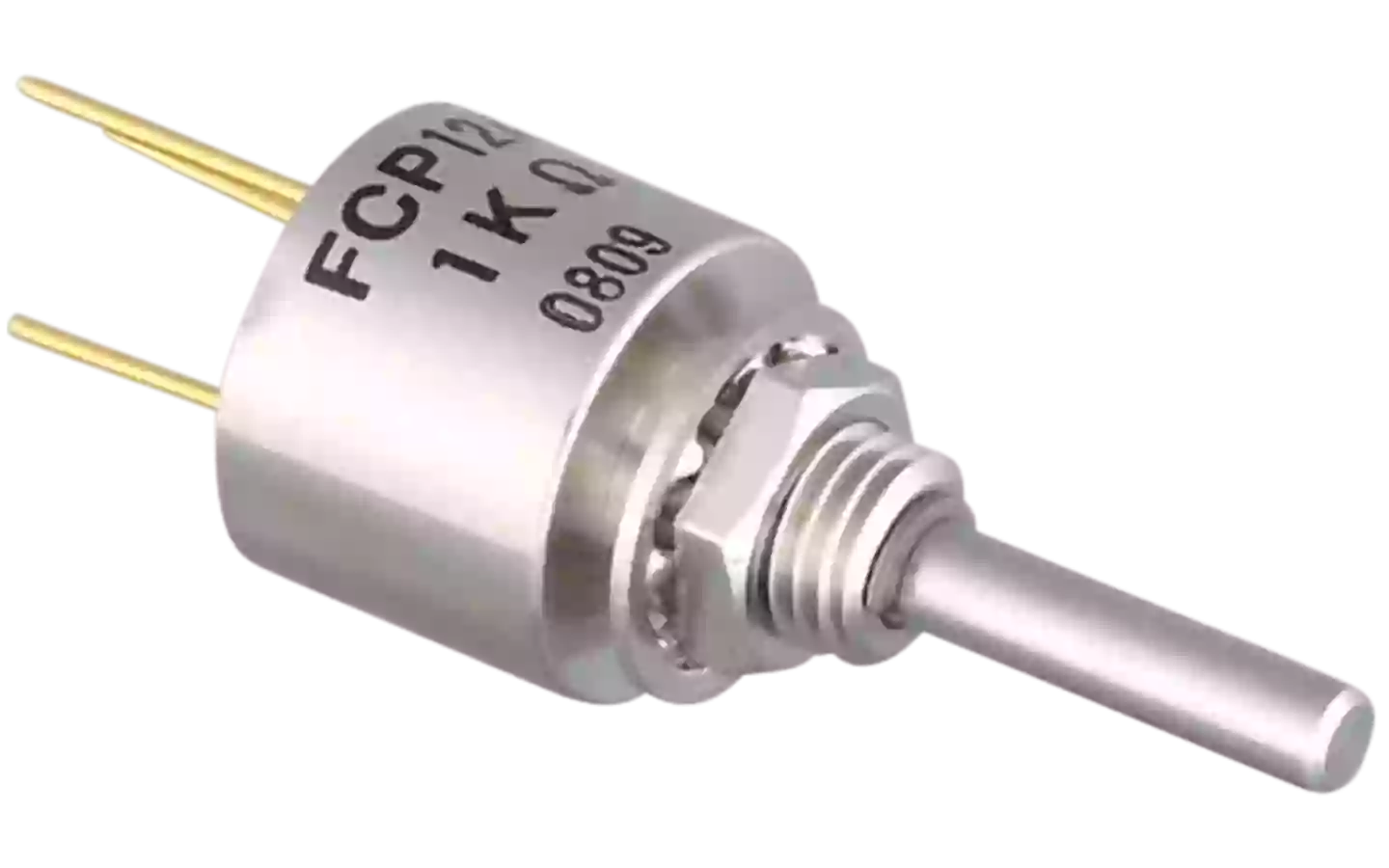

FCP12AC Single-turn Potentiometer

Conductive plastic - Bushingmount


Nyckelfunktioner

  • Conductive plastic
  • Dimensions D x L (mm): 13 x 10
  • Standard Resistance Range 1 Ω to 10 kΩ
  • Independent Linearity (± %): 2.0 to 1.0
  • Mechanical travel (+10° 0°): 360°
  • Electrical travel (±5°): 300° ±5°

About the FCP12AC Single-turn Potentiometer- Conductive plastic (Bushingmount)

The FCP12AC is a low-cost 1-turn potentiometer with rear extended pin terminals.

Special Specifications Available

Extra taps (available up to 1 tap), shaft with front and rear extension (rear shaft with 1mm dia. and 10mm length), with stopper (rotating angle becomes 310º and stopper strength is 0.3N·m [3kgf·cm]), special electrical travel, shaft dia. (ø3.175mm) bushing with inch dimensions, special machining on the shaft.

Behöver du den här sensorn till ditt nästa projekt?

Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.

Prata med en expert

Få det på ditt sätt

Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.

Prata med en expert

Tekniska specifikationer

Specifikation Värde
Contact resistance variation Within 3% C.R.V.
Dielectric strength 1 minute at 500 V.A.C.
Electrical travel 300º ±5º
Independent linearity tolerance Standard Class ±2.0% precision Class ±1.0%
Insulation resistance Over 1,000MΩ at 500 V.D.C
Mass Approx. 8g
Mechanical travel 360º (Endless)
Output smoothness Within 0.1% against input voltage
Power rating 0.2W
Resistance temp. coefficient ±400p.p.m./ºC
Resolution Essentially infinite
Special practical resistance values 500, 20k, 50k, 100k (Ω)
Standard resistance values 1k, 2k, 5k, 10 k (Ω)
Starting torque Within 2mN·m (20gf·cm)
Starting torque Within 2mN·m (20gf·cm)
Total resistance tolerance Standard Class ±15% (L) Precision Class ±10% (K)
