FCP22A Single-turn Potentiometer
Conductive plastic - Servomount
Nyckelfunktioner
- Conductive plastic
- Dimensions D x L (mm): 22.23x15
- Standard Resistance Range 1 Ω to 10 kΩ
- Independent Linearity (± %): 1.0 to 0.25
- Mechanical travel (+10° 0°): 360°
- Electrical travel (±5°): 320° ±5°
About the FCP22A Single-turn Potentiometer- Conductive plastic (Servomount)

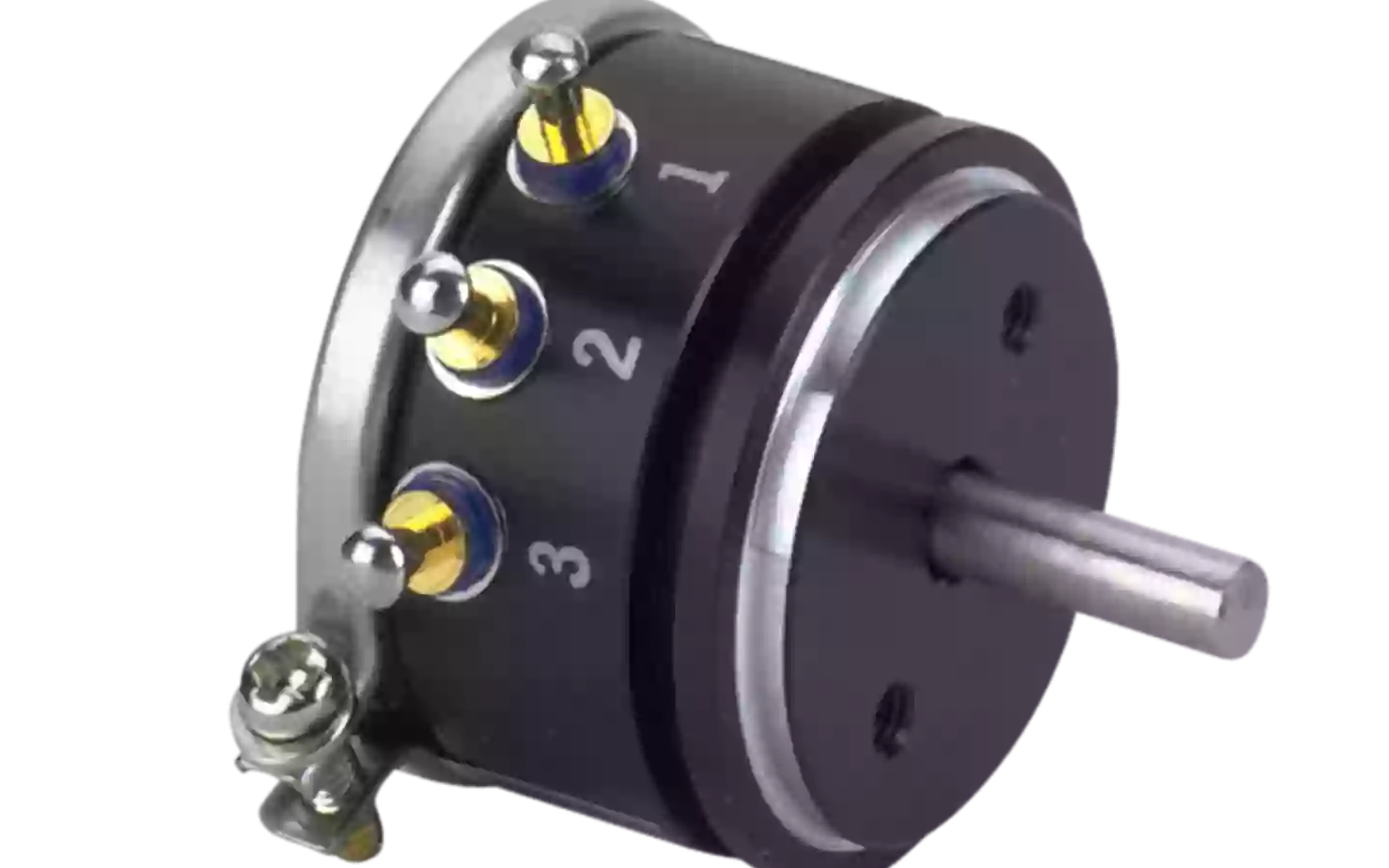

The FCP22A is a servomount type potentiometer with ball bearings, a 22mm outer diameter and turret side terminals.
Special Specifications
Extra taps (available up to 1 tap), multi-ganged (available up to 5 gangs, housing length is extended by 8.5mm per 1 gang), shaft with front and rear extension (rear shaft with 3mm dia. and 10mm length), with stopper (rotating angle becomes 320º and stopper strength is 0.3N·m [3kgf·cm]), special electrical travel, shaft dia. (ø3.175mm) with inch dimensions, special machining on the shaft.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
Specifikation | Värde |
---|---|
Contact resistance variation | Within 2% C.R.V. |
Dielectric strength | 1 minute at 1,000 V.A.C. |
Electrical travel | 320º ±5º |
Independent linearity tolerance | Standard Class ±1.0%, Precision Class ±0.5%, Super precision Class ±0.25% |
Insulation resistance | Over 1,000MΩ at 1,000 V.D.C |
Mass | Approx. 20g |
Mechanical travel | 360º (Endless) |
Output smoothness | Within 0.1% against input voltage |
Power rating | 1.0W |
Resistance temp. coefficient | ±400p.p.m./ºC |
Resolution | Essentially infinite |
Shaft diameter (mm) | 3 |
Special practical resistance values | 200, 500, 20k, 50k, 100k (Ω) |
Standard resistance values | 1k, 2k, 5k, 10 k (Ω) |
Starting torque | Within 1.5mN·m (15gf·cm) |
Total resistance tolerance | Standard Class ±10% (K) |
