FCP40A Single-turn Potentiometer

1-turn Potentiometer - Conductive plastic (Servomount)


Nyckelfunktioner

  • Conductive plastic
  • Dimensions D x L (mm): 36.5x18
  • Standard Resistance Range 1 Ω to 10 kΩ
  • Independent Linearity (± %): 0.5 to 0.1
  • Mechanical travel (+10° 0°): 360°
  • Electrical travel (±5°): 340° ±5°

About the FCP40A Single-turn Potentiometer- Conductive plastic (Servomount)

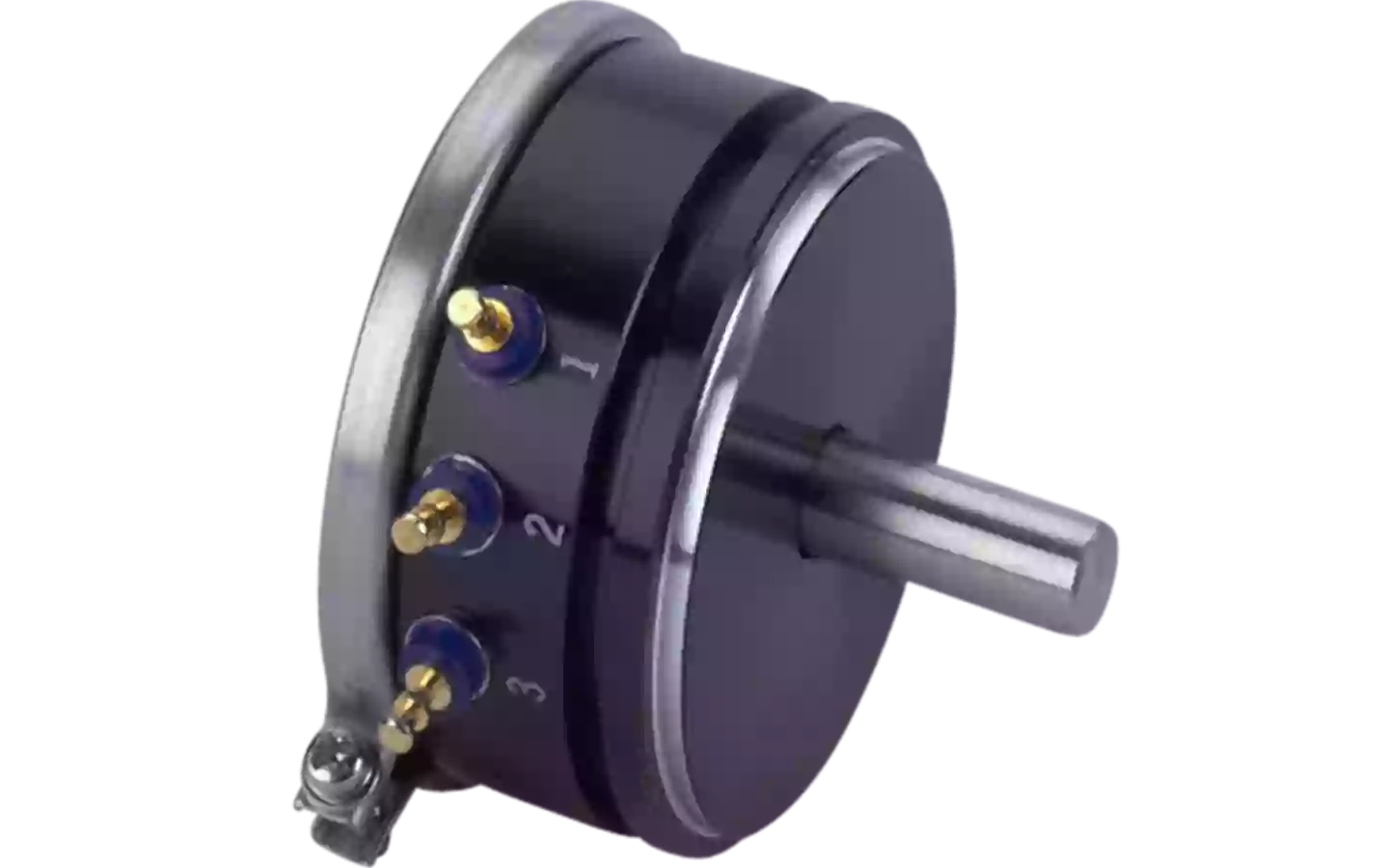

The FCP40A is a servomount type potentiometer with ball bearings, a 37mm outer diameter and turret side terminals.

Special Specifications Available

Extra taps (available up to 3 taps), multi-ganged (available up to 7 gangs, housing length is extended by 12mm per 1 gang), shaft with front and rear extension (rear shaft with 6mm dia. and 15mm length), with stopper (rotating angle becomes 320º and stopper strength is 0.9N·m [9kgf·cm]), special electrical travel, shaft dia. (ø6.35mm) with inch dimensions, special machining on the shaft.

Behöver du den här sensorn till ditt nästa projekt?

Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.

Prata med en expert

Få det på ditt sätt

Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.

Prata med en expert

Tekniska specifikationer

Specifikation Värde
Contact resistance variation Within 2% C.R.V.
Dielectric strength 1 minute at 1,000 V.A.C.
Electrical travel 340º ±5º
Independent linearity tolerance Standard Class ±0.5%, Precision Class ±0.25%, Super precision Class ±0.1%
Insulation resistance Over 1,000MΩ at 1,000 V.D.C
Mass Approx. 60g
Mechanical travel 360º (Endless)
Output smoothness Within 0.1% against input voltage
Power rating 2.0W
Resistance temp. coefficient ±400p.p.m./ºC
Resolution Essentially infinite
Shaft diameter (mm) 6
Special practical resistance values 500, 20k, 50k, 100k, 200k (Ω)
Standard resistance values 1k, 2k, 5k, 10 k (Ω)
Starting torque Within 3mN·m (30gf·cm)
Total resistance tolerance Standard Class ±10% (K)
