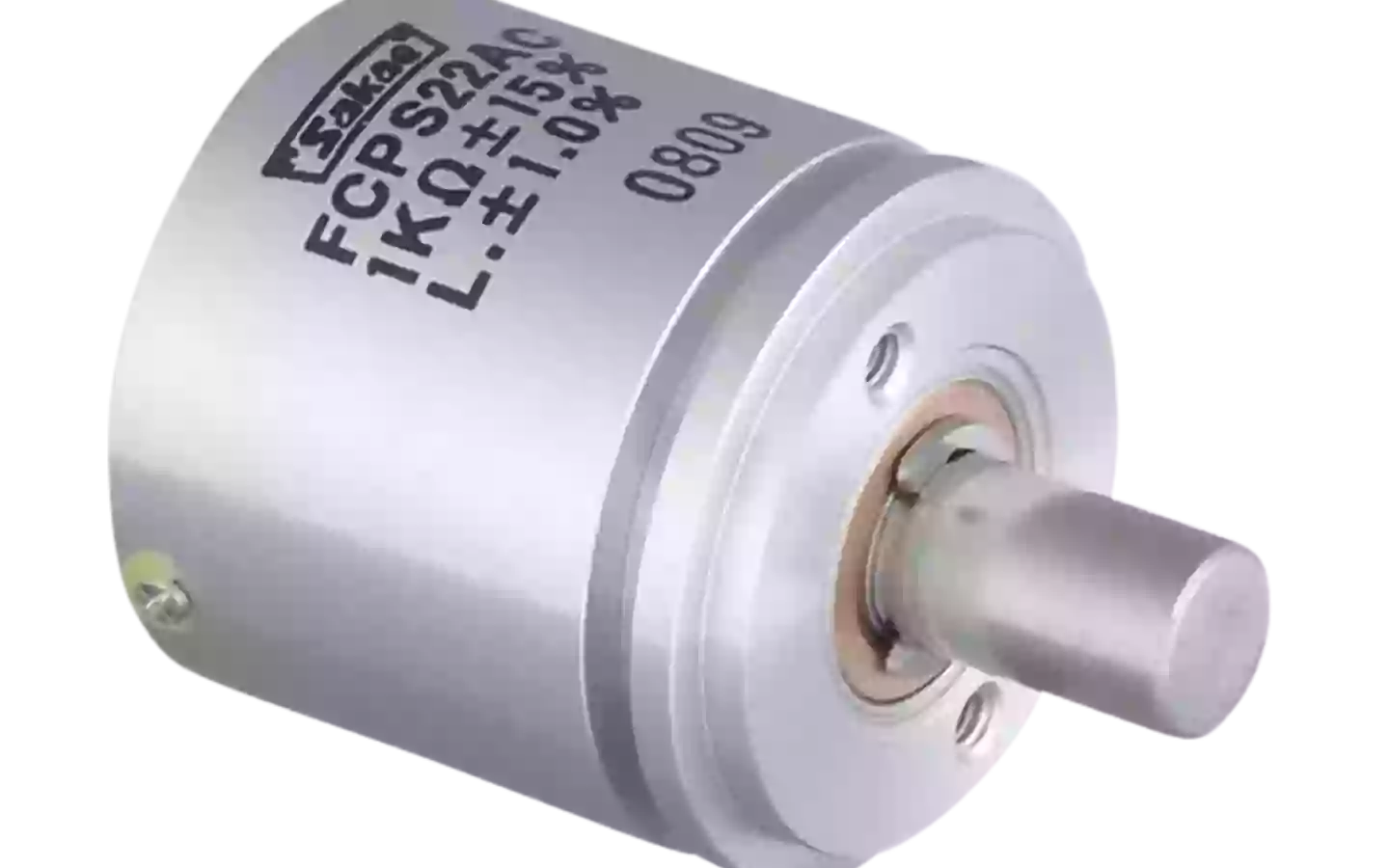

FCPS22AC Single-turn Potentiometer
Servomount - Oilless Metal Bearings Incorporated
Nyckelfunktioner
- Conductive plastic
- Dimensions D x L (mm): 22x20
- Standard Resistance Range 1 Ω to 10 kΩ
- Independent Linearity (± %): 1 to 0.5
- Mechanical travel (+10° 0°): 360°
- Electrical travel (±5°): 320° ±5°
About the FCPS22AC Single-turn Potentiometer- Conductive plastic (Servomount oilless metal bearings incorporated)
The FCPS22AC is a low-cost servomount type potentiometer with oil-less metal bearing and rear extended turret terminals.
Special Specifications Available
Extra taps (available up to 1 tap), shaft with front and rear extension (rear shaft with 3mm dia. and 20mm length), with stopper (rotating angle becomes 320º and stopper strength is 0.9N·m [9kgf·cm]), special electrical travel, shaft dia. (ø6.35mm), special machining on the shaft, with ball bearings incorporated.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Contact resistance variation | Within 2% C.R.V. |
| Dielectric strength | 1 minute at 500 V.A.C. |
| Electrical travel | 320º ±5º |
| Independent linearity tolerance | Standard Class ±1.0%, Precision Class ±0.5% |
| Insulation resistance | Over 1,000MΩ at 500 V.D.C |
| Mass | Approx. 30g |
| Mechanical travel | 360º (Endless) |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 1.0W |
| Resistance temp. coefficient | ±400p.p.m./ºC |
| Resolution | Essentially infinite |
| Shaft diameter (mm) | 6 |
| Special practical resistance values | 500, 20k, 50k, 100k (Ω) |
| Standard resistance values | 1k, 2k, 5k, 10 k (Ω) |
| Starting torque | Within 5mN·m (50gf·cm) |
| Total resistance tolerance | Standard Class ±15% (L), Precision Class ±10% (K) |
