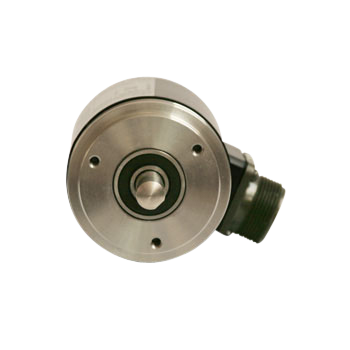

E520 Incremental Rotary Encoder
58mm round flange
Nyckelfunktioner
- Pulses per revolution: 2 - 25000
- Shaft diameter: 6 or 8 or 10 mm / RE530 11 mm
- Protection degree: IP64 (optional IP 65)
- Operating temp.: -10 ÷ +70ºC
- E520, servo coupling, Ø 58 mm round flange,
- Ø 50 mm centering mask
E520 / E521 - Incremental rotary encoder
Incremental rotary encoders with or without zero pulse, fit to servo-coupling, and compatible to the international standardized series SIZE23; a flange type RE0444 is also available (series RE530). The compact electronic circuitry joins perfectly with the reliable and thoroughly tested mechanical construction, allowing to keep a favourable price/performance relation.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Case | E520 ABS self-extinguishing / RE520/RE530 aluminium |
| Connection outlets | Axial or radial connector type MS 7p (10p for line driver output). Axial or radial cable 3 m long (1 m for line driver output) |
| Current consumption | 30÷80 mA |
| Electronic output | Push-pull, line-driver, open collector NPN or PNP, pull-up resistor NPN or PNP. Protection against short circuits |
| Inertia | ≤25 g cm2 |
| Max frequency | 100 KHz |
| Max load | 80 N axial / 100 N radial |
| Output signals | Two square waves 90°±15° out of phase. Zero pulse 90°±15° wide |
| Resolutions per minute | 6000 continuous* /10000 temporary *(Max operating speed with IP65) sealing ring applied on the shaft: 3000 rpm |
| Shaft | Stainless steel AISI 303 |
| Shock resistance (11ms) | 50 G |
| Starting torque | < 0.8 Ncm |
| Stocking temp. | -20 ÷ 80ºC |
| Supply | 10÷24 Vdc or 5 Vdc±5%. Protection against polarity reversal |
| Vibrations resistance (10÷2000 hz) | 100 m/sec |
| Weight | E520 280 g - RE520 320 g - RE530 600 g |
| Zero reference pulse | 1 pulse each resolution |
