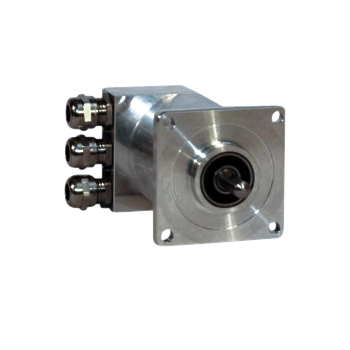

MEM - BUS Single-turn Absolute Rotary Encoder
Different mechanical versions are available to satisfy all application requirements
Nyckelfunktioner
- Single-turn: 8192 steps/revolution
- 13 bit, multi-turn: 65536 resolutions - 16 bit
- Data memory > 21 years
- Protection degree: IP65
- Operating temp.: -30 - +70°C
- Shaft diameter: 6, 8, 10 mm
MEM-Bus - Single & Multi-turn Absolute Encoders with Fieldbus Interface
Available with a wide array of mechanical solutions, absolute encoders series MRE52, MRE54 and MRE62 grant high resolutions (8, 9, 10, 12 or 13 bits). The different output signals (serial or parallel) and voltage supplies allow to couple them to any counting system or PLC.
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Accuracy | ± ½ LSB |
| Case | Aluminium |
| Connection outlet | 3 cable glands or 2 cable glands |
| Consumption | 2 W |
| Data memory | >21 years power off* |
| Emitted interference | EN 61000-6-4 |
| Fielbus interface | CANopen, Profibus DP |
| Inertia | =25g cm2 |
| Initializing time | < 1 s |
| Interference immunity | EN 61000-6-2 |
| Joint hole | Ø 8, 10, 12, 14, 15 mm |
| Max load | 80 N axial / 100 N radial |
| Mem410-bus | Hollow shaft for motor coupling |
| Mem430-bus | Hollow shaft Fixing with elastic support |
| Mem520-bus | Ø.58 mm round flanged – servo coupling SIZE23 |
| Mem540-bus | Ø.58 mm round flanged, Ø 36 mm centering mask |
| Mem620-bus m | mm 63.5x63.5 square flanged SIZE25 |
| Operating principle | Magnetic |
| Protection | Against polarity reversal |
| Resolution/resolution | 8192 step/rev. – 13 bit |
| Resolutions no. (multiturn) | 65536/16 bit |
| Resolutions/minute | 6000 |
| Shaft | Stainless steel |
| Shock resistance (11 ms) | 50 G |
| Starting torque | =0,8Ncm |
| Stocking temp. | -30 ÷ +85°C |
| Supply | 5 ÷ 28 Vdc |
| Vibration resistance (10÷2000 hz) | 100 m/sec2 |
| Weight | 500 g ca. |
