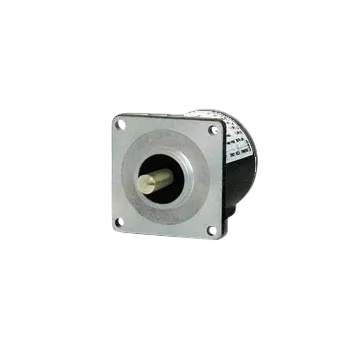

MRE Single-turn Absolute Rotary Encoder
Detection of displacements on operating machines (packing machines, sheet, marble, wood-working, textile machinery and more)
Nyckelfunktioner
- 8-13 bit resolution, binary or Gray code
- Wide mechanical range
- SSI, parallel or analogue output
- NPN or PNP open collector, push-pull output
- Shaft diameter: 6, 8, 9.52, 10 mm
- Strong and reliable
- Protection degree: IP64
- Operating temp.: 0÷60° C
MRE52, MRE54, MRE62 - Single-turn Absolute Encoder Series
Available with a wide array of mechanical solutions, absolute encoders series MRE52, MRE54 and MRE62 grant high resolutions (8, 9, 10, 12 or 13 bits). The different output signals (serial or parallel) and voltage supplies allow to couple them to any counting system or PLC.
Applications for MRE
- Detection of displacements on operating machines (packing machines, sheet, marble, wood-working, textile machinery etc.)
- Camme operation on presses
- Revolving turrets on machine tools
Behöver du den här sensorn till ditt nästa projekt?
Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.
Produktnedladdningar
Få det på ditt sätt
Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.
Prata med en expertTekniska specifikationer
| Specifikation | Värde |
|---|---|
| Case | Aluminium |
| Inertia | =5 g cm |
| Max load | 20N axial / 40N radial |
| Mre52 | Servo coupling, Ø 58 mm, SIZE 23, Weight 320 g |
| Mre54 | Round flange, Ø 58 mm, centering mask, Ø 36 mm, Weight 350 g |
| Mre62 | Square flange, mm 63.5x63.5, SIZE 25, Weight 440 g |
| Resolutions/minute | 6000 |
| Shaft | Stainless Steel |
| Shock resistance (11 ms) | 30 G |
| Starting torque | =0,2 Ncm |
| Stocking temp. | -15 ÷ 70° C |
| Vibrations resistance (10÷2000 hz) | 10 G |
