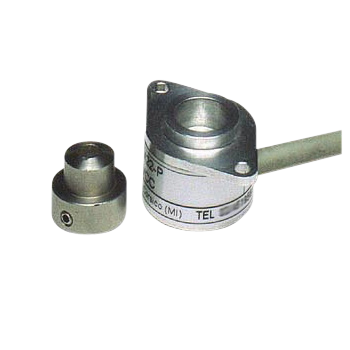

RM22 Incremental Rotary Encoder

---

RM22 - Magnetic Encoders

• RM22: 9 bits
• Ø 22 mm body, single turn absolute encoder
• Protection: factor IP 65
• Operating temp.: 0°C to +70°C
• Hollow shaft: diameter 6 mm

Operating principle

One single diametraly polarised magnet activares the Hall sensors integrated in the ASIC. Absolute-Binary Parallel or Synchro Serial, Incremental-Qudrature or Sin/Cos signals are available on the encoder outputs. Electronics is incorporated in aluminium housing with high IP ratings. Stainless steel magnet carrier is mounted on 6 mm shaft diameter.

Features RM22

• Heavy duty
• Shock resistant
• Easy mounting
• Contactless encoding
• High ip rating
• Different outputs
• Modular, without ballbearings

Applications for RM22

• Industrial automation
• Motor comutation
• Automotive

Models

• RM22-P: Absolute 9 bit binary encoder parallel output
• RM22-S: Absolute 9 bit binary encoder serial output
• RM22-I: Incremental, 128 Impulses per turn
• RM22-A: Analog Sine - Cosine output

---
