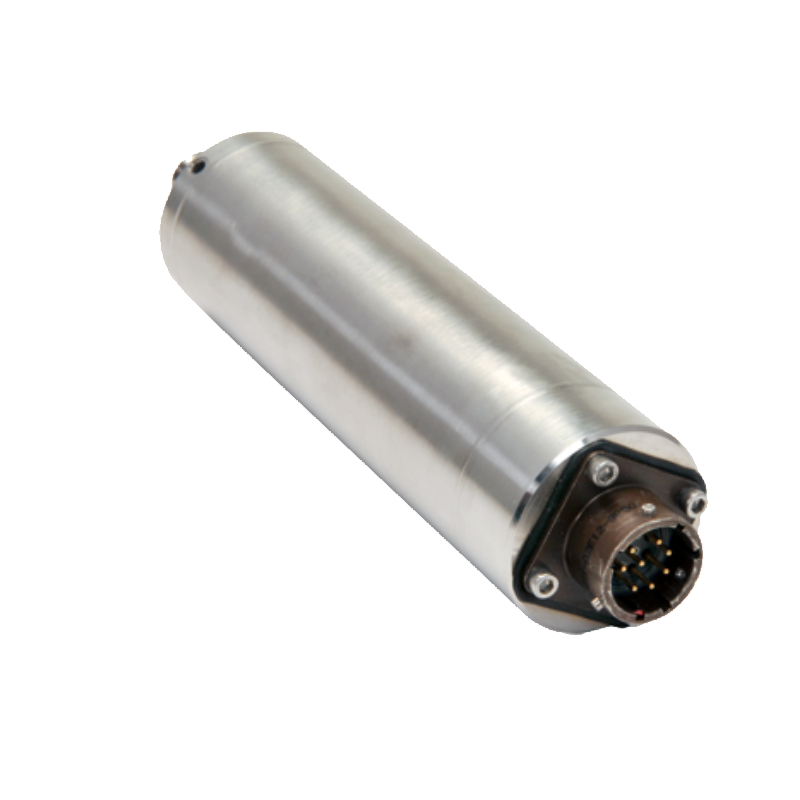

DS High-Precision Pressure Sensor

Digital/analog output pressure sensor


Nyckelfunktioner

  • 0.1 % total error band (includes temperature)
  • 1200 Hz analog response
  • Gage and absolute designs available
  • All-welded stainless steel construction
  • Selectable RS-232 or RS-485
  • 380 readings/second digital output

About the DS High-Precision Pressure Sensor

The Model DS offers the “smart” combination of microprocessor-based, internal signal conditioning and micromachined silicon pressure sensor technology to provide digital communications directly to your PC with superior accuracy and stability. With <1 ms step response on the analog output and >300 readings/second on the digital output, the Model DS provides the speed required for dynamic automotive or aerospace applications. With an all-welded stainless steel construction, the Model DS is suit-able for rugged environments and pressure media compatible with stainless steel.

Behöver du den här sensorn till ditt nästa projekt?

Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.

Prata med en expert

Få det på ditt sätt

Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.

Prata med en expert

Tekniska specifikationer

Specifikation Värde
Accuracy 0.1%
Compensated temperature 4 °C to 60 °C [40 °F to 140 °F]
Electrical termination Bendix PT02-12-8P or equivalent mates with PT06A-12-8S
Mating connector PT06A-12-8S
Measurement range 0 - 0.35 bar to 0 - 170 bar (0 - 5 psi to 0 - 2500 psi)
Media compatibility Gas and liquid compatible with 316L SS and Hastelloy C-276
Operating temperature -40 °C to 82 °C [-40 °F to 180 °F]
Output RS - 485 or RS - 232 [15 - 28VDC], 0 - 5 V [15 - 28 VDC]
Overload, burst 400 % over capacity
Pressure type gauge, absolute
Wetted parts material Ha C276/316 Stainless Steel
