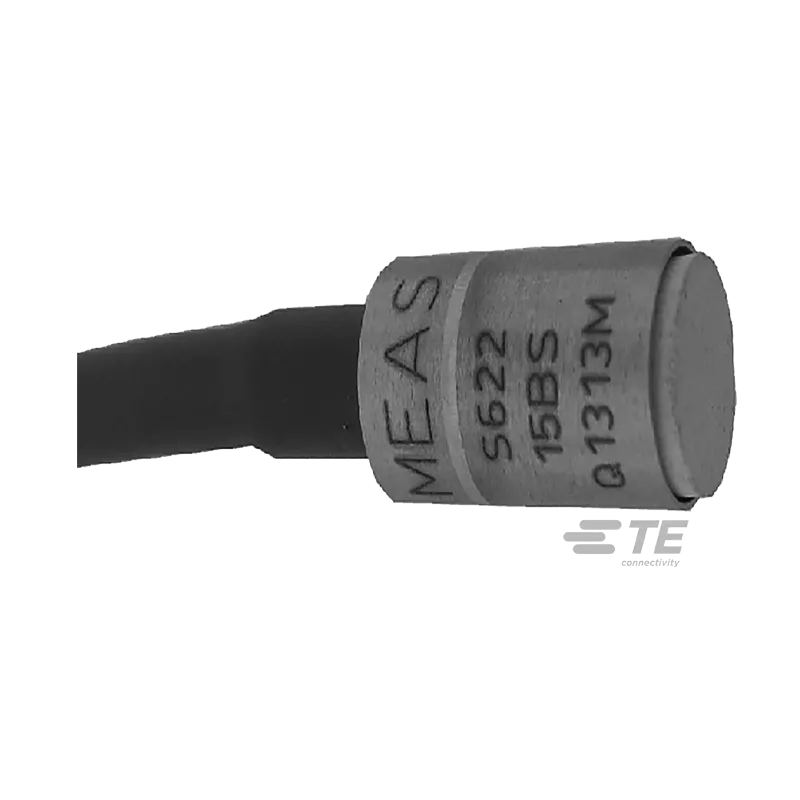

EPB-PW Miniature Pressure Sensor

Small pressure probe sensor


Nyckelfunktioner

  • Measurement Range: 0 - 1 to 0 - 70 bar
  • Porous stones available
  • -40°C to +80°C Operating Temperature
  • Accuracy up to ±0.5%

About the EPB-PW Miniature Pressure Sensor

The EPB-PW pressure transducer is specifically designed for pore water applications in either centrifuges or laboratory equipment. Using either ceramic or bronze sintered filters, the sensor can be used on clay or sand-based materials.
Made of titanium, the EPB-PW provides a rugged construction and is not affected by external clamping forces when fitted. Having a miniature design of 6.4 x 11.4mm ensures it is backwards compatible with other older manufacturers’ products.

This miniature pressure transducer features an IP68 rating, flexible cable and is available with options such as a PT1000 temperature sensor upon request. The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Centre stands ready to provide a custom design as required.
On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

Applications EPB-PW Mini Pressure Sensor

  • Pore Water Measurement
  • Centrifuge
  • Laboratory



Behöver du den här sensorn till ditt nästa projekt?

Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.

Prata med en expert

Få det på ditt sätt

Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.

Prata med en expert

Tekniska specifikationer

Specifikation Värde
Accuracy 0.5% to 1.0%
Dimensions Dia 6.4 mm [ Dia .252 in ]
Measurement range 0 - 1 bar to 0 - 70 bar (0 - 15 to 0 - 1000 psi)
Operating temperature -40 to 80 °C [ -40 to 176 °F ]
Options Cable Length, Compensation Temperature Range, Excitation 5 Vdc, Porous Ceramic Installation
Output 5 to 12.5 mV/V [1 - 10 VDC]
Overpressure 2X, 3X, 4.5X FS
Port material Titanium
Pressure type sealed
