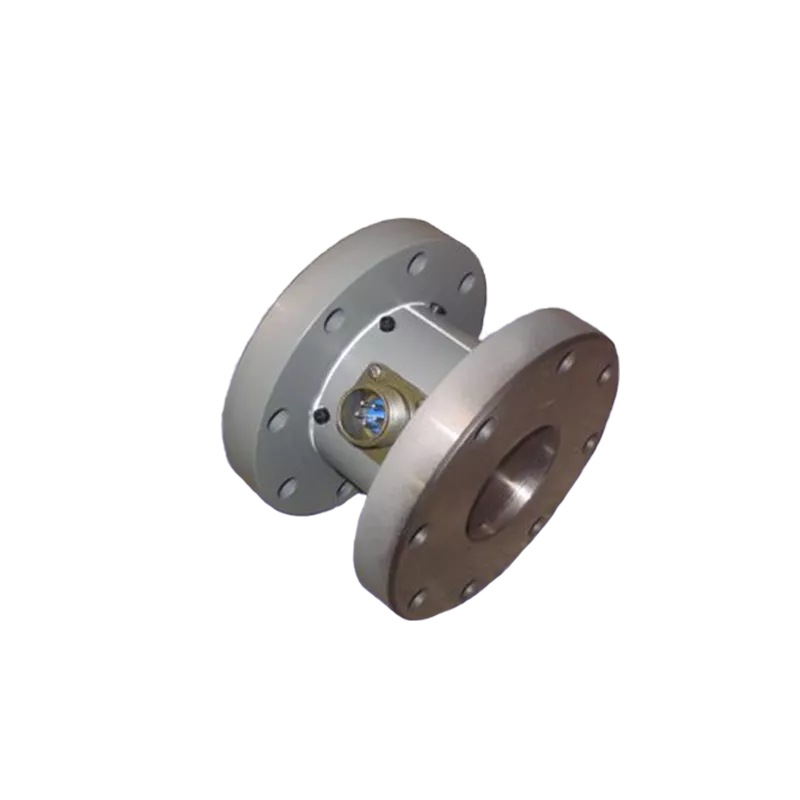

01165-01171 Reaction Torque Sensor

Torque transducer with flange


Nyckelfunktioner

  • Capacity: 6, 11, 23, 57, 113, 226, 395, 585, 1.130, 1.695, 2.260, 3.390, 4.520, 5.850, 11.300, 19.775, 22.600 Nm
  • 150% of F.S. Overload capacity
  • Non-linearity: 0.10% of F.S.
  • Hysteresis: 0.10% of F.S.
  • -54 to +121°C Operating temperature

About the 01165-01171 Flange Torque Sensor

Because non-accelerating systems must have equal reactions to actions produced, it is often possible to measure output torque by measuring reaction forces acting on the devices housing.This sensor is ideal for measuring reaction or restraining torque in motor, pump, and fixture mounts. These hollow sensors are well suited for limited rotation applications.

Behöver du den här sensorn till ditt nästa projekt?

Begär en offert eller lämna dina uppgifter för att få mer information från en av våra experter.

Prata med en expert

Få det på ditt sätt

Inte exakt vad du letar efter? Vi erbjuder standardsensorer, men kan också hjälpa dig med en komplett skräddarsydd lösning. Kontakta oss för rådgivning eller budgetprissättning.

Prata med en expert

Tekniska specifikationer

Specifikation Värde
Bridge resistance 700/350 Ohms
Capacity 6 - 22600 Nm (50 to 200,000 in.lb.)
Compensated temperature 70 to 170°F
Excitation voltage, maximum 20 Vdc
Hysteresis 0.10% of F.S.
Non-linearity 0.10% of F.S.
Output at f.s 2.0 mV/V nominal
Overload capacity 150% of F.S.
Temperature effect on span 0.002% of Rdg./°F
Temperature effect on zero 0.002% of F.S./°F
Useable temperature -65 to +250°F
Zero balance 1.00% of F.S.
